Symbol MC50 - Pin-Outs

Specifications A-11
Pin-Outs

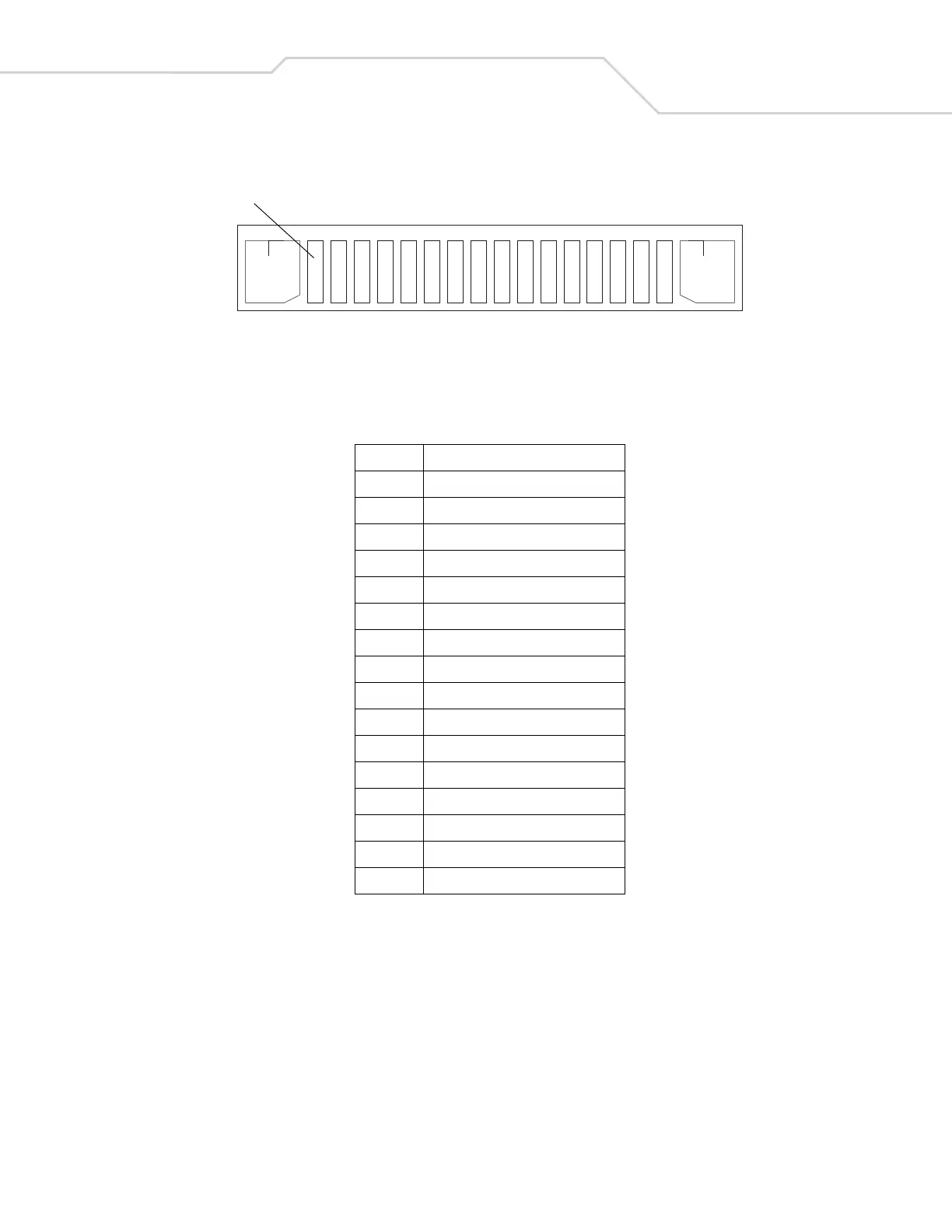

Figure A-1. External Connector
Table A-10. External Connector Pin-Outs
Pin Description
1 Power Gnd
2 Not connected
3 Not connected
4 USB_D-
5 USB_D+
6 USB_Gnd
7 USB_Vbus
8 USB_ID
9 RS232_TXD
10 RS232_RXD
11 RS232_RTS
12 RS232_CTS
13 RS232_DTR
14 RS232_DSR
15 External_5.0V
16 External DC In
Pin 1
