Symbol MC50 - Four Slot Spare Battery Charger

Accessories 2-17
Four Slot Spare Battery Charger
This section describes how to set up and use the Four Slot Spare Battery Charger to charge up to four MC50 spare batteries.
Use only a Symbol-approved power supply (p/n 50-14000-148) output rated 12 Vdc and minimum 3.33A. The
power supply is certified to EN60950 with SELV outputs. Use of alternative power supply will invalidate any
approval given to this device and may be dangerous.
Hinweis: Benutzen Sie nur eine von Symbol Technologies genehmigte Stromversorgung (Teilenr. 50-14000-
148) mit einer Ausgangsleistung von 12 V (Gleichstrom) und mindestens 3.33A. Die Stromversorgung ist nach
EN60950 für die Verwendung in SELV-Stromkreisen zertifiziert. Bei Verwendung eines anderen Netzteils
werden alle für das Gerät gewährten Genehmigungen außer Kraft gesetzt, und der Betrieb kann gefährlich
sein.
Spare Battery Charging
1. Connect the charger to a power source.
2. Insert the spare battery into a spare battery charging well and gently press down on the battery to ensure proper contact.

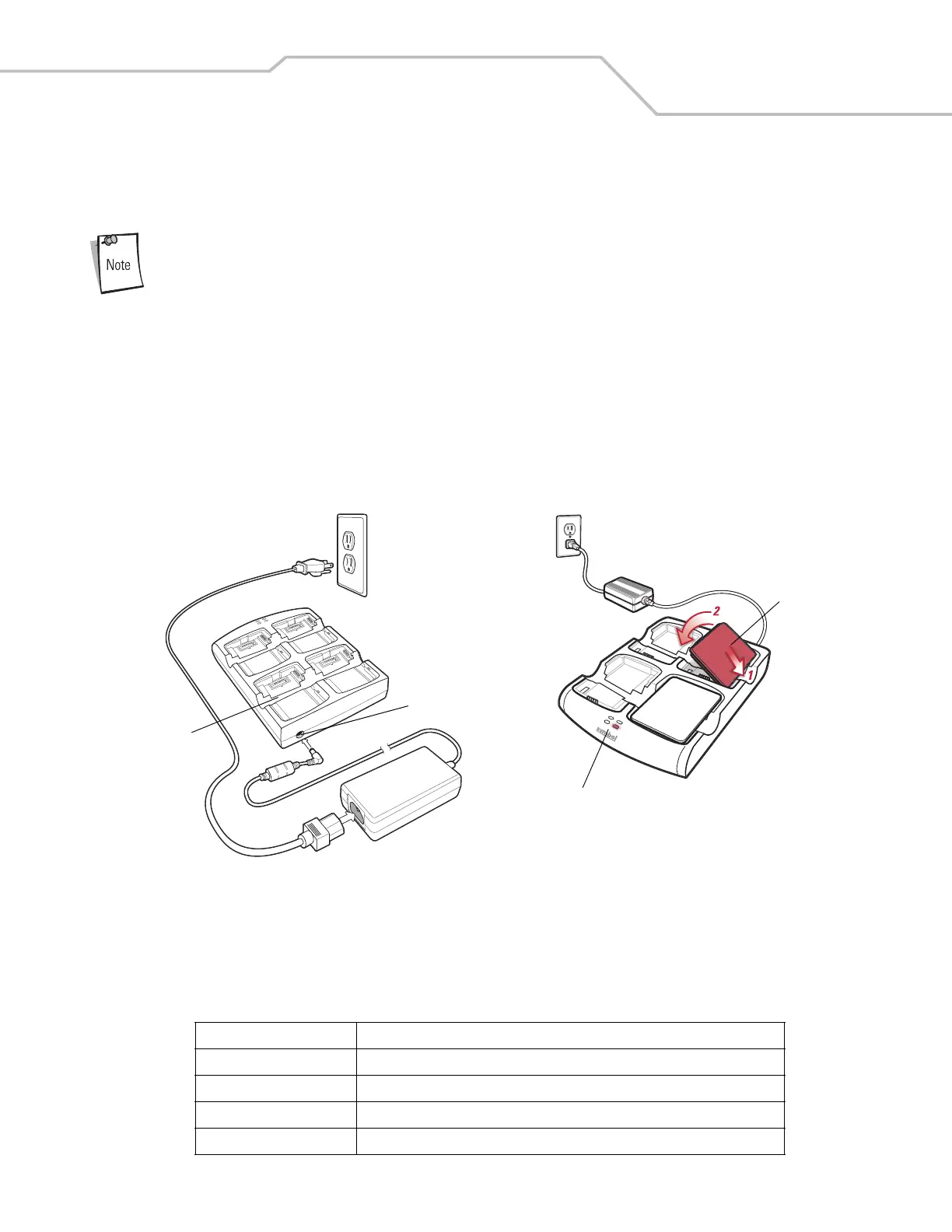

Figure 2-14. Four Slot Spare Battery Charger
Battery Charging Indicators
An amber LED is provided for each battery charging well. See Table 2-3 for charging status indications. The standard battery fully
charges in approximately 2.5 hours and the extended capacity battery fully charges in approximately six hours.
Table 2-3. Spare Battery LED Charging Indicators
LED Indication
Off No spare battery in slot; spare battery not placed correctly; cradle is not powered.
Fast Blinking Amber Error in charging; check placement of spare battery.
Slow Blinking Amber Spare battery is charging.
Solid Amber Charging complete.
Power Port
Spare Battery
Charging LEDs (4)
Spare Battery
Spare Battery
Charging Well (4)
