32 XLi Time & Frequency System
XLi-man, Issue 8, 6/17/2008, Rev. H
SSSSSSSSSSSS SSSSSSSSSS SSSSSSS S SSS S SSSSS S
1
Have the following items ready and available:
• The appropriate AC or DC power source to connect to the XLi’s power supply.
• A #2 size Phillips bit screwdriver

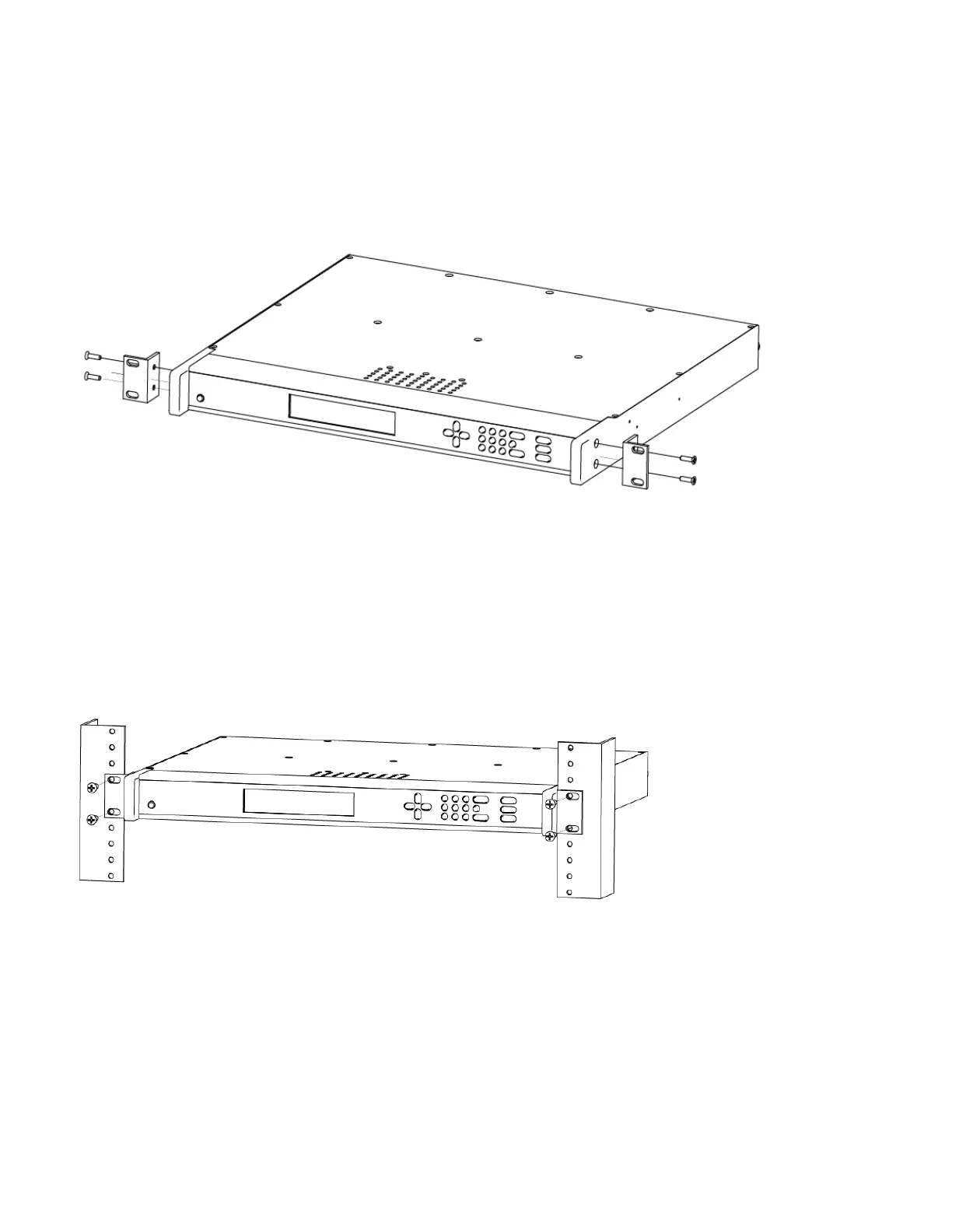

To rack mount the XLi:
• Unscrew the four phillips-head screws from the front end of the side panels.
• Use the same screws to attach the rack mount brackets, as shown.
• Tighten the screws using a #2 size Phillips screwdriver.
• Position the XLi in any EIA Standard 19-inch (48.26 cm) rack system, and line up holes in the
brackets with the holes in the rack.
• Secure the brackets to the rack using rack mount screws.
Note: Ensure that the ambient operating temperature does not exceed +50° C. Install the XLi chassis so
that the top and bottom holes are unobstructed and have sufficient clearance to allow 6 cfm of air to pass
through the chassis. To maintain recommended operating temperatures, install a rack-cooling fan
capable of 100 cfm in heavily loaded racks.
