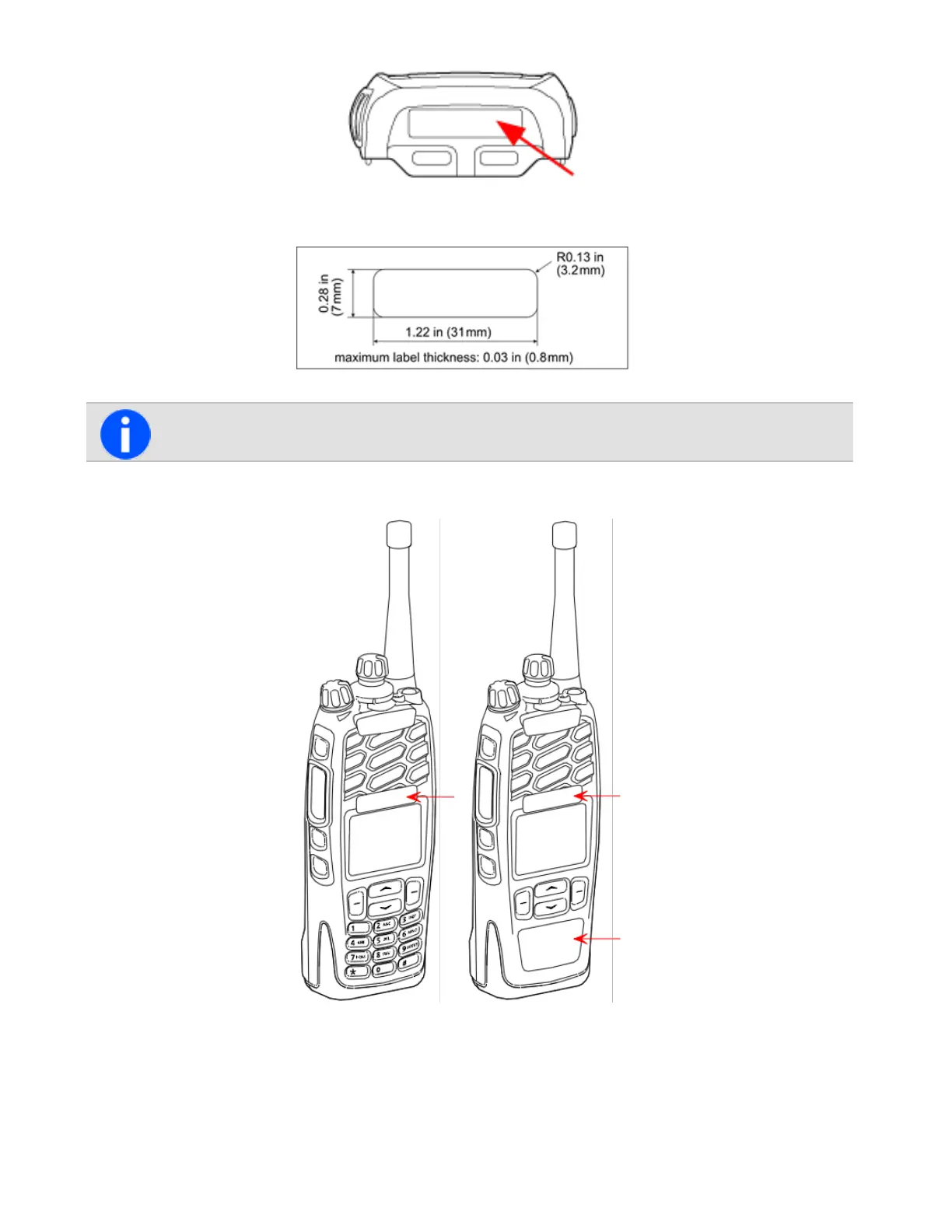

Figure 2.2 Spare label recess

Thediagrambelowshowsthespecifieddimensionsofthelabel.

Figure 2.3 Spare label dimensions

4-keymodelshaveaspeciallydesignedrecessforcustomlabels.

Userscanalsosticklabelsoverthetopofthemodellabel.Thisrecesswillaccommodate1/4"labelmakerlabels.

Pleaseensurethelabelshaveasuitableadhesivesurfacebeforeapplication.



Figure 2.4 Location of model and custom labels

Tait International Ltd December 2019
