45
4. Settings
MEASURE. START.
Set the measurement starting method (page54).
COND.
Select the signal used for the trigger.
LEVEL
Set the trigger level.
o When the starting condition is “External signal”, the
measurement starting level setting has no effect.
MEASURE. STOP.
Set the measurement stopping method (page54).
COND.
Select the signal used for the trigger.
LEVEL
Set the trigger level.
o When the stopping condition is “External signal”, the
measurement stopping level setting has no effect.
NOTE
o Settings related to works are explained in “4-5. Work set-
tings” on page44.
o Displacement conditions are only enabled when the X axis
is displacement.
COPY WORK
Use this to copy work settings to a different work number.
The number shown in “Copy source” is the current work num-
ber. Select the source work to copy before touching the COPY
WORK SETTING button.
Touch the COPY WORK SETTING button to open the COPY
WORK screen. Then, select the work number for the copy desti-
nation, and touch the OK button to copy the settings.
When “ALL” is set as the “COPY DESTINATION”, settings will be
copied to all the work numbers other than the current one.

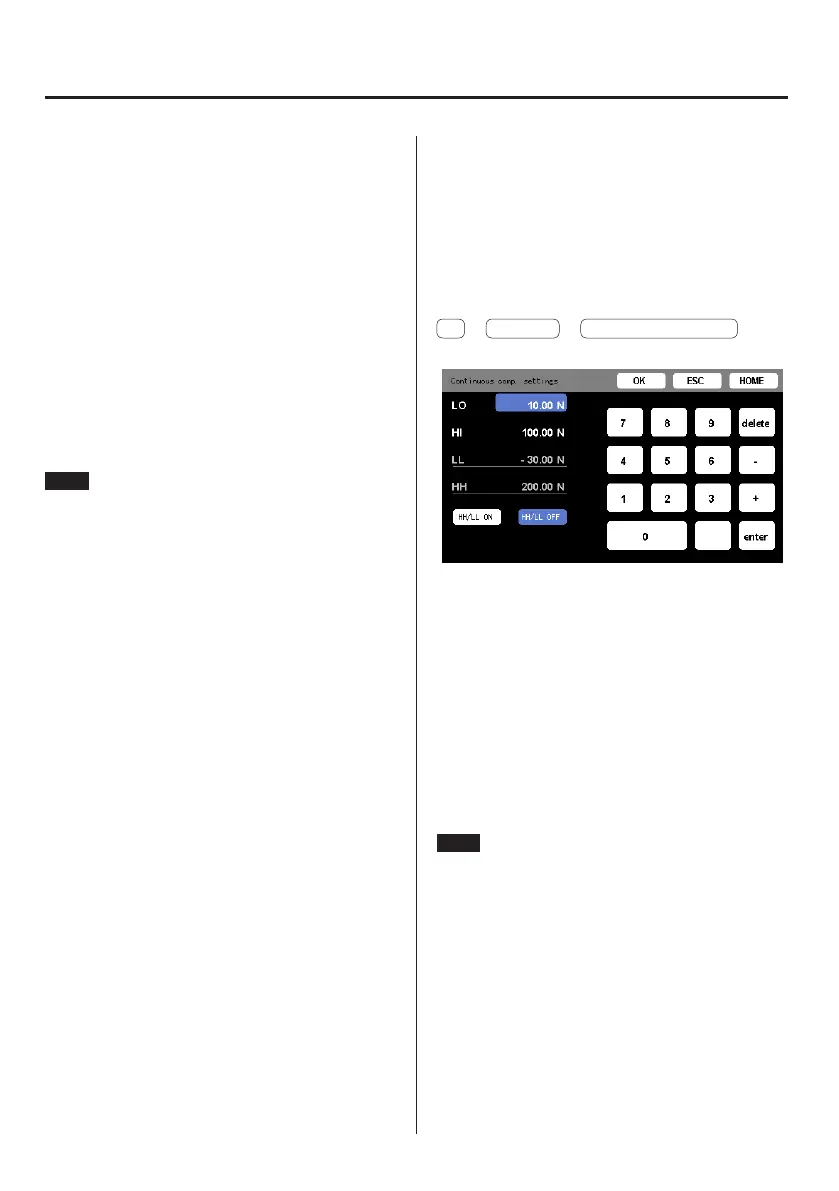

4-5-1. CONTINUOUS JUDGMENT
Measurement values are compared to comparison values to
conduct judgment.
Continuous judgment is conducted when “CONTINUE” is the
status displayed on the screen.
Setting items
Touch the buttons in the following order on the Home Screen.
⚙
e
WORK
e
CONTINUOUS JUDGMENT
Set the comparison values to use for judgment.
LO
Set the low limit value.
HI
Set the high limit value.
LL
Set the low low limit value.
HH
Set the high high limit value.
HH/LL ON, HH/LL OFF
Select “HH/LL ON” to use high high limit and low low limit.
NOTE
o Set the size relationships of the comparison values as
follows.
LL<LO<HI<HH
o During measurement triggered by “Start/stop measure-
ment” control signals or the START button, band or zone
judgments will be output. Continuous judgment will not
be conducted.
