56
4-6-4. Zone judgment timing chart
Switch zone
This is enabled when the “ZONE SWITCHING” setting on the
ZONE JUDGMENT screen is set to “EXT. INPUT” (page57).
The zone section is determined by signal ON and OFF.
HI and LO judgment outputs (load/judgment)
The indicator value during constant comparison or the
hold value at other times is compared to the high and low
limits and judgment is output.
HI: high limit value < load or hold value
LO: load or hold value < low limit value
Both HI and LO can become ON.
OK judgment output timing
This becomes ON when all judgments in the enabled zone
become OK.
4-6-4-1. Setting items
Touch the buttons in the following order on the Home Screen.
⚙
e
WORK
e
ZONE JUDGMENT

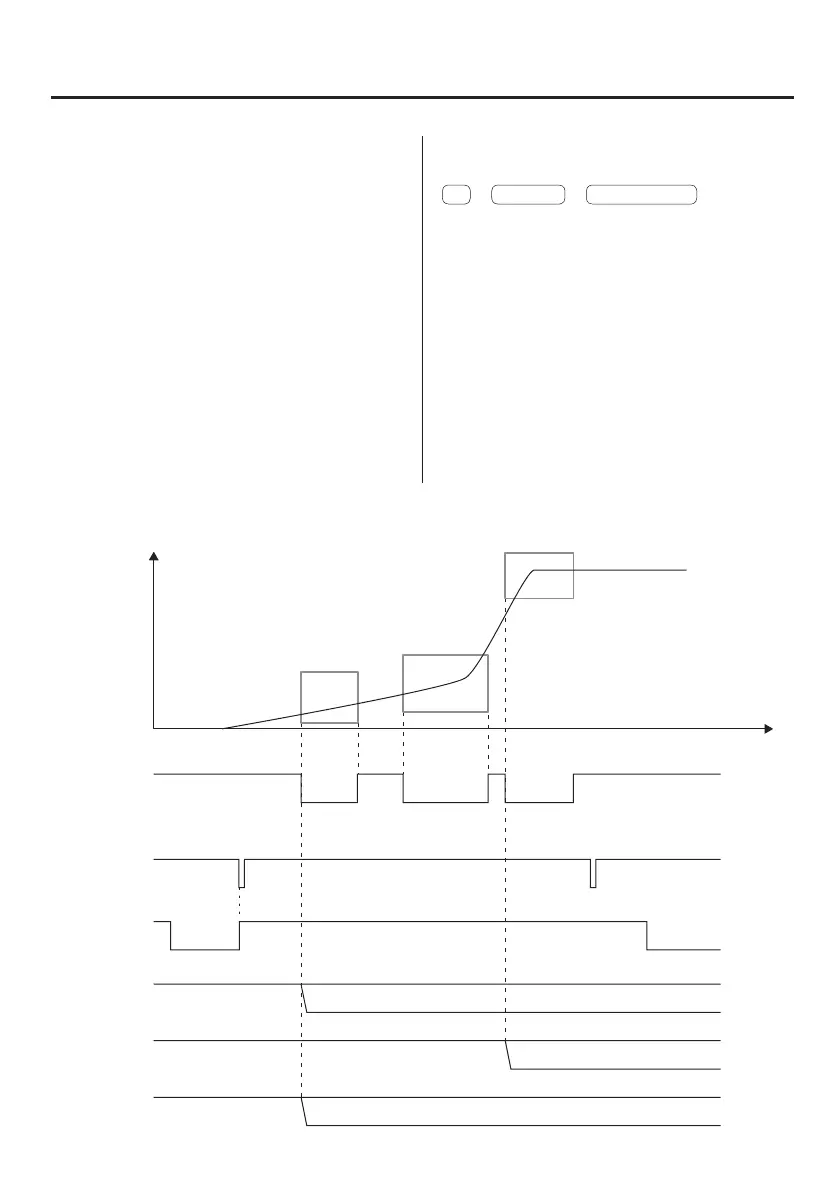

Timing example
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
ON
Load
Switch zone
Zone 1
Zone 2
Zone 3
Start/stop measurement
Start/stop
Measurement complete
Judgment output (load/displacement)
Time or displacement
4. Settings
