4. Settings

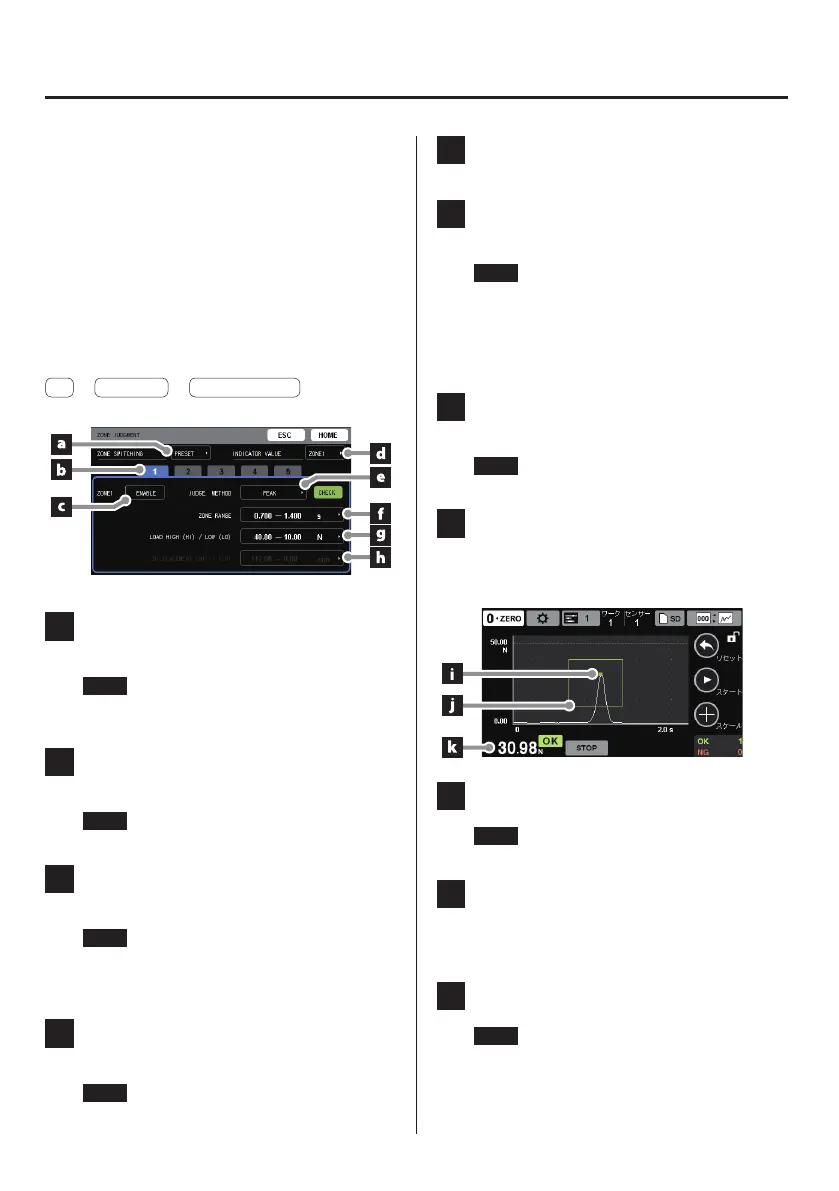

4-5-3-2. Setting examples
For details about each setting item, refer to the following
explanations.
Peak hold
This explanation uses settings for conducting peak holds with
multi-zone judgment as an example. (A displacement sensor is
not used in this example.)
Touch the buttons in the following order on the Home Screen
to open the settings screen.
⚙
e
WORK
e
ZONE JUDGMENT
a ZONE SWITCHING
Select PRESET.
NOTE
Holds will occur when measurement values are in the
zone.
b Zone
Select 1.
NOTE
Any number from 1 to 5 can be selected.
c Zone 1
Select ENABLE.
NOTE
The judgment method will be conducted simultaneously
for enabled zones, so be sure that unneeded zones are
not enabled.
d Indicator value display
Select ZONE 1.
NOTE
This shows ZONE 1 hold values after measurement.
e JUDGE. METHOD (judgment method)
Select PEAK.
f ZONE RANGE
Select 0.700–1.400s.
NOTE
After starting measurement, peak holds will be con-
ducted for 0.700–1.400 seconds.
To conduct peak holds for the time between measure-
ment start and finish, set the 0–X axis full scale value
(page29).
g LOAD HIGH (HI)/LOW (LO)
Select 40.00–10.00N.
NOTE
Set the range for OK judgment.
h DISPLACEMENT HIGH (HI)/(LO)
Do not use this.
The results measured with the above settings will be as follows.
i Hold position
NOTE
This is the peak hold point with these settings.
j Zone range display
The range designated with the ZONE RANGE setting
and the LOAD HIGH (HI)/LOW (LO) limits is shown with
a rectangle.
k Load indicator value
NOTE
This shows the peak value with these settings.
To Next Page
