4. Settings

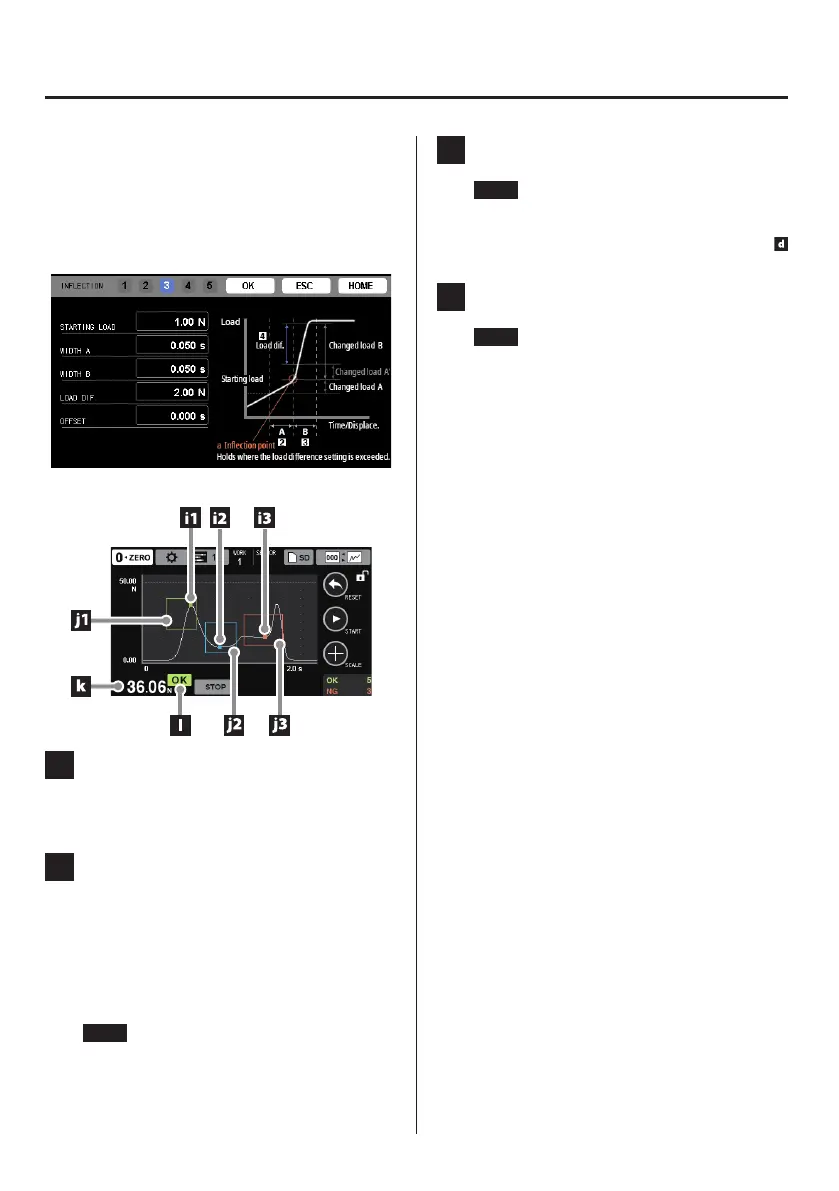

For inflection points, further settings must be made to conduct
inflection point holds. After selecting INFLECTION for the judg-
ment method, touch the selection button again to open the
settings screen.
See “4-6-4-2-8-1. Setting items” on page64 for information
about setting items, and set values suitable for the waveforms
to be measured.
The results measured with the above settings will be as follows.
i Hold position
i1: Peak hold position
i2: Bottom hold position
i3: Inflection point hold position
j Zone range display
The range designated with the ZONE RANGE setting
and the LOAD HIGH (HI)/LOW (LO) limits is shown with
a rectangle.
j1: Peak hold zone
j2: Bottom hold zone
j3: Inflection point zone
NOTE
Zone display colors
1: olive, 2: cyan, 3: orange, 4: light yellow, 5: pink
k Load indicator value
NOTE
o These settings will show the peak value of zone 1.
o To show the hold value of a different zone, set the
indicator value display to that zone.
l Load judgment
NOTE
For multi-zone judgment cases, if the judgment for all
zones is OK, the judgment will be OK.
