The level probe is not installed on delivery and must be mounted on the floor of the
tank by the installation company. If the probe cable is extended, a terminal box with a
pressure compensation element must be used (see section 2.6).

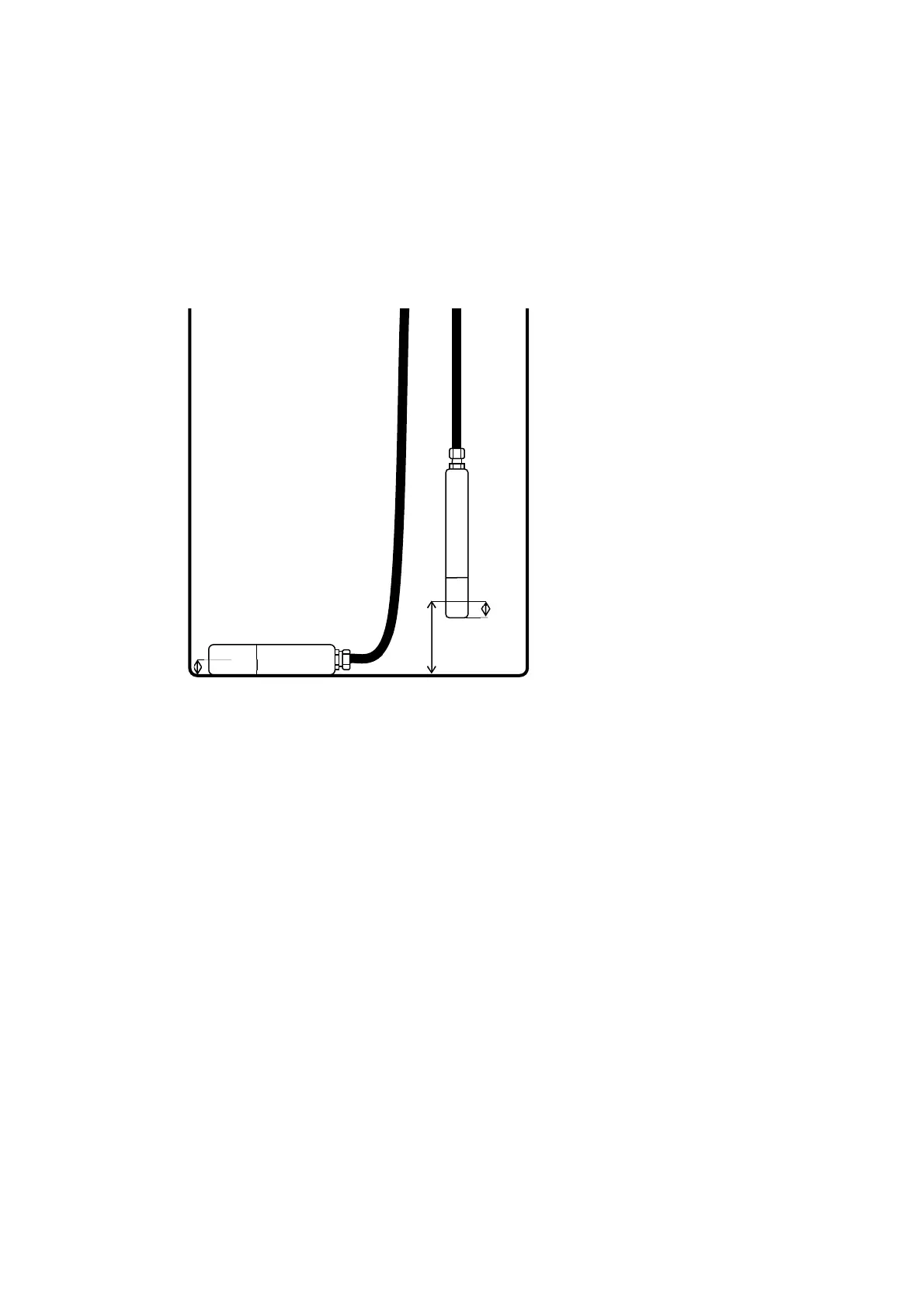

The sensor should be positioned horizontally at the lowest point of the tank so that
the effective installation height (offset) is as close as possible above the bottom of
the tank (see sketch). In particular cases it can be necessary to position the sensor
suspended above the floor of the tank. Then the offset for this tank must be entered
in the corresponding input mask.
*
The offset depends on the type of sensor
Offset
