84 44 1670 001-GB-I

HDA eco

Annex C. Functional Principle mytecalemit Cloud

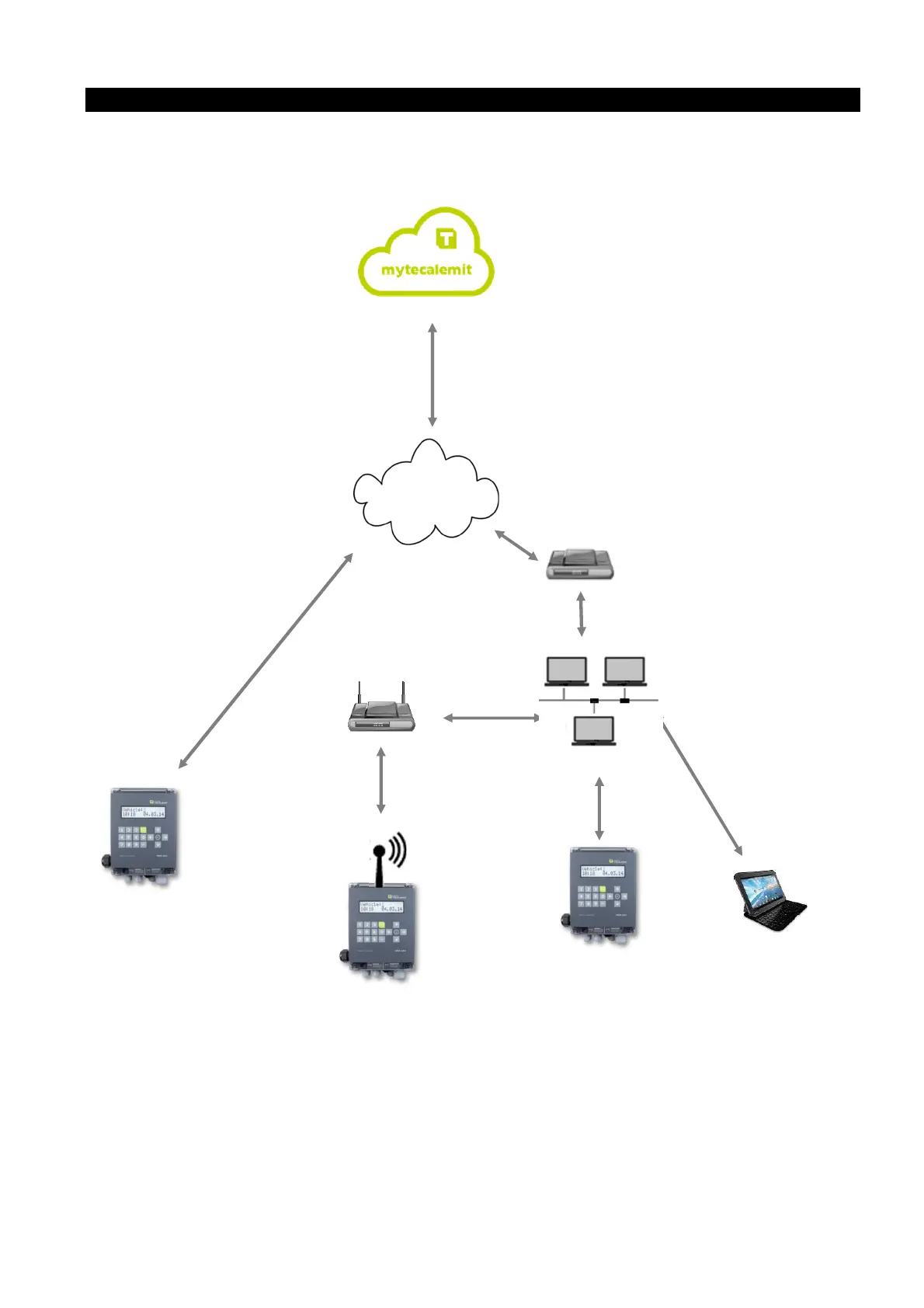

Schematic for a Customer with three HDA

Internet

Unique Customer-ID

1234567890

Registration: www.mytecalemit.com

01823481

01823482

01823483

Unique ident. number for each HDA

HDA eco equipped with M2M SIM cards

CMR

Wi-Fi

LAN

Wi-Fi

Web-Browser

1234567890

Unique Customer ID

Router

Main Page
