TECALEMIT HDA eco - Printer Connection

24 44 1670 001-GB-I
HDA eco
Connection diagram
3.1.5.2 Printer connection
Via the serial interface, it is possible to connect an EPSON TM20 RS232 printer. An
undisturbed printout is possible with a cable length of approx. 15m (depending on the
cable type and how it is laid). The RS232 socket modem must be plugged into the HDA
eco.

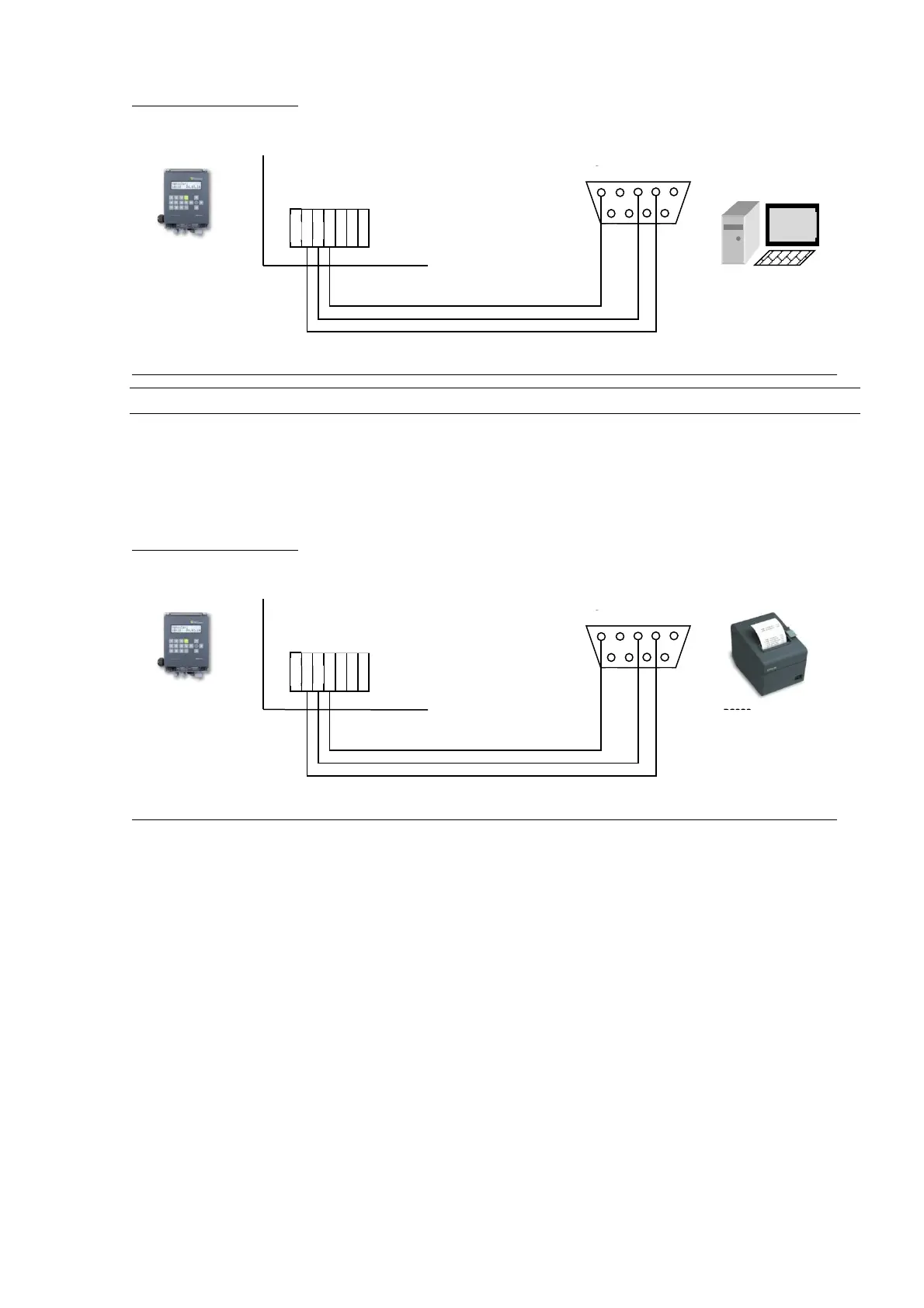

Connection diagram
HDA eco
P
8
6 5 4 3 2 1
X2
PCB HDA eco
PC
HD
Manager
D sub socket 9-pole
(front view)
1
5
6
9
RX
TX
GND
PE
HDA eco
P
8
6 5 4 3 2 1
X2
PCB HDA eco
D sub socket 9-pole
(front view)
1
5
6
9
RX
TX
GND
PE
EPSON TM-T20
RS232
