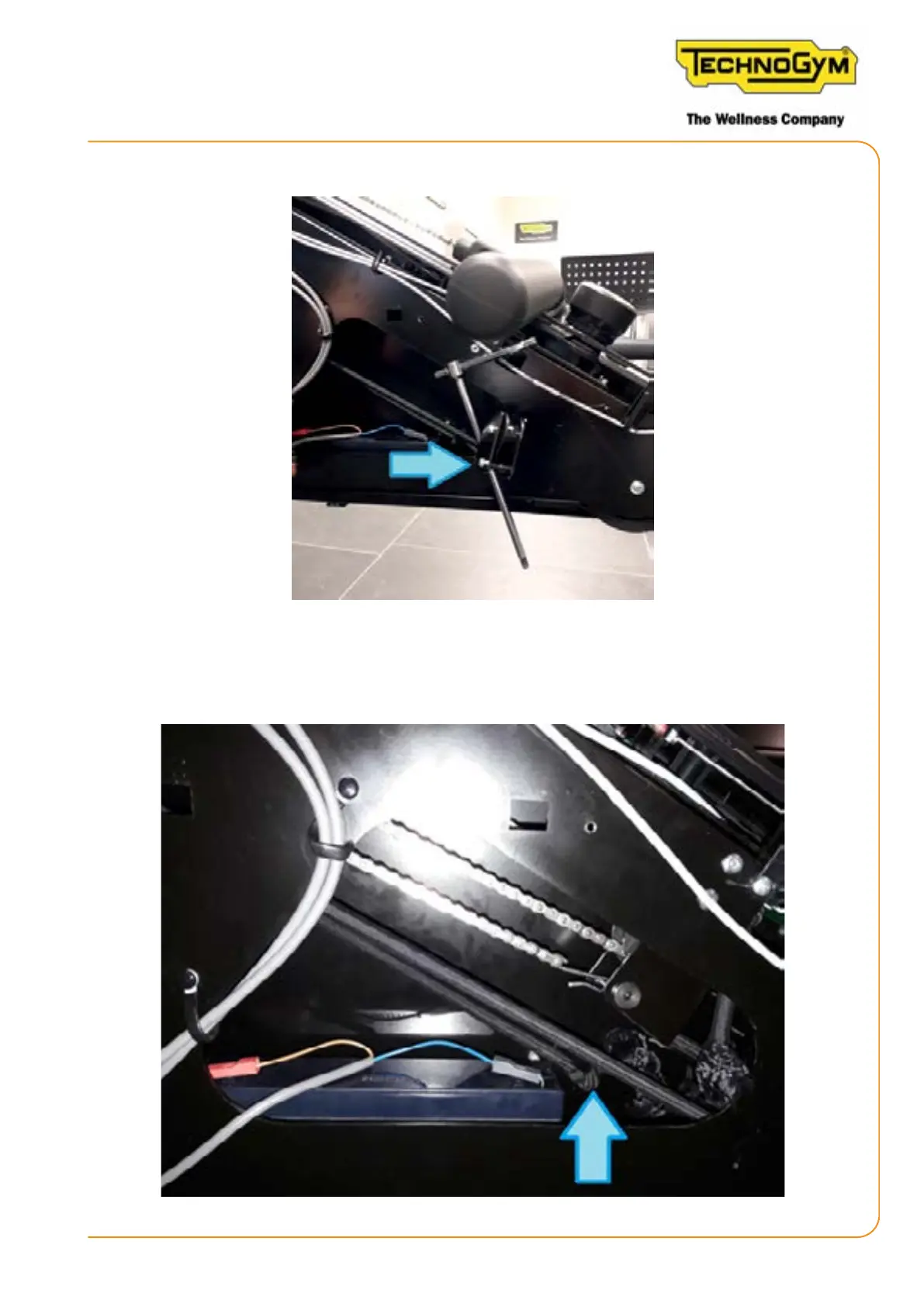

5. Secure the black box with a hex wrench.

Figure 52

6. Release the lower elastic cable. Unhook the elastic cable from the fork.

SKILLROW:

Technical Service Guide - Rev. 1.1

Page 81e-mail: support@technogym.com
