Figure 53

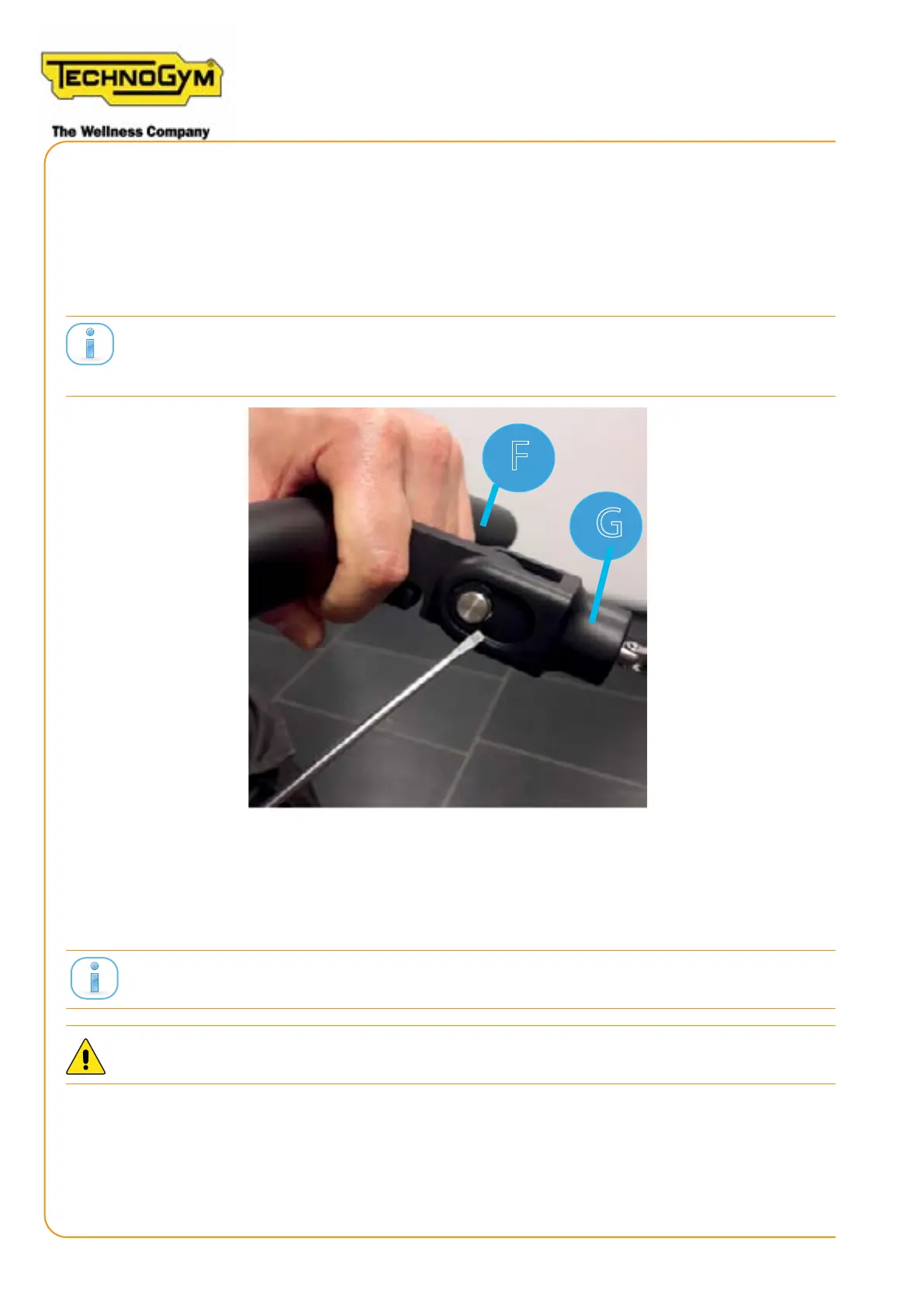

7. Remove the old chain from the handlebar (F). To do this, follow the below procedure:
a. Remove the handlebar (F) (“7.7 disassembling handlebar”), and
b. Remove the case (G).
 ATTENTION:whenyouremovethehandlebar,thechaincanenterintheequipment.Keepthechain
outsidetheequipmentthroughthegrippliersorshapingapieceofcartboard.
F
G
Figure 54
8. Fix the case (G) and the handlebar (F) to the new chain.
9. Insert the new chain in the equipment, following the below scheme.
Theclipmustbefacingdownwards.
Donotcrossthechainandelasticcables.
