SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.14

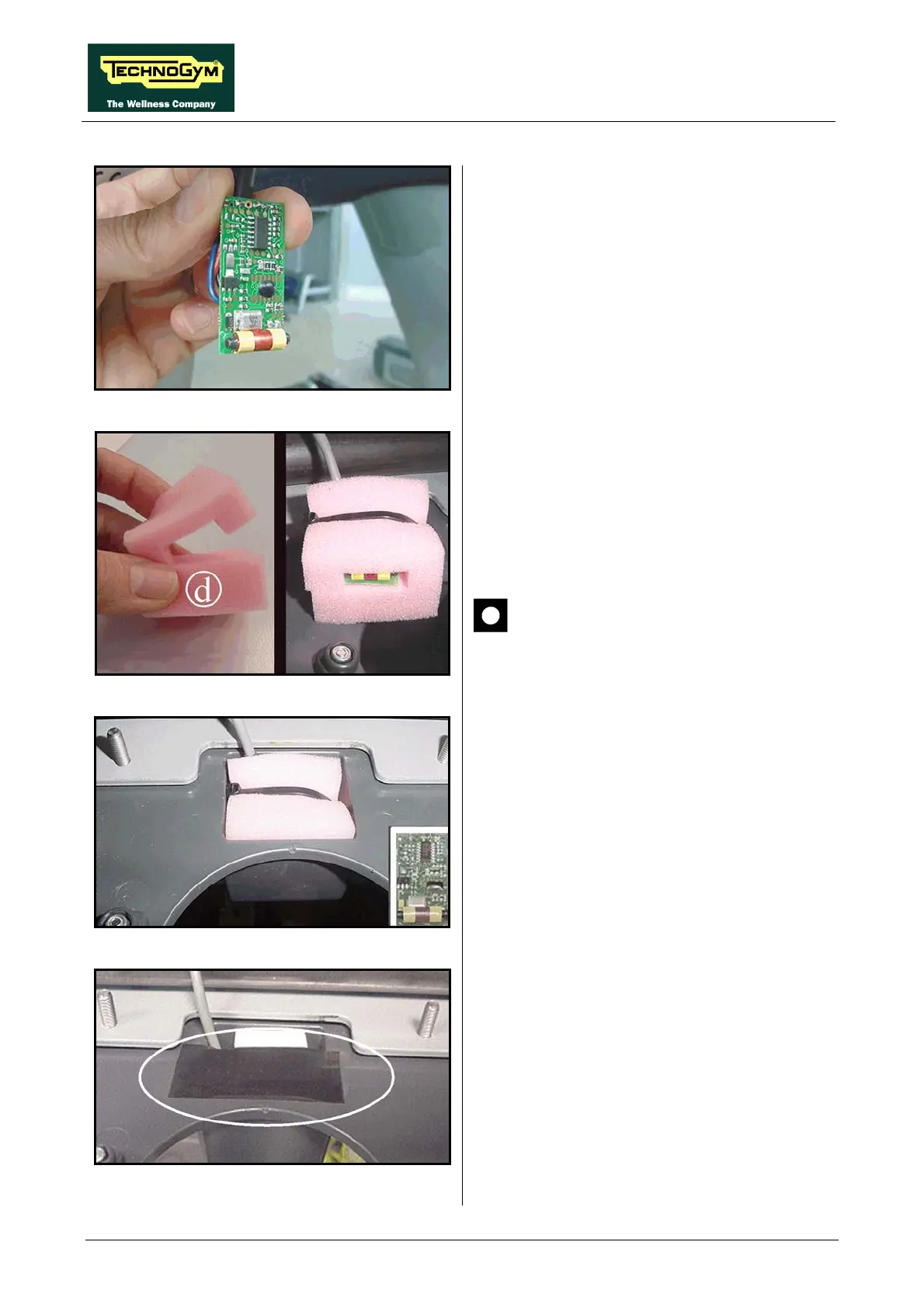

Figure 7.4-4
2. Connect the cable to the cardio receiver and
bend the cable on a side of the connector.
Figure 7.4-5
3. Place the receiver in the sponge (d) as shown
in the picture to side.
4. Use a cable tie to secure the receiver in the
sponge.
ATTENTION: The receiving coil must be
oriented upwards and toward the user.
Figure 7.4-6
5. Place on top of the receiver, inside the plastic
housing, a thick sponge.
Figure 7.4-7
6. Secure the cardio receiver and the sponges
with a sticker.
To reassemble the cardio receiver, carry out the
above steps in reverse order.
