SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.23
7.8. BRAKE BOX DISASSEMBLY

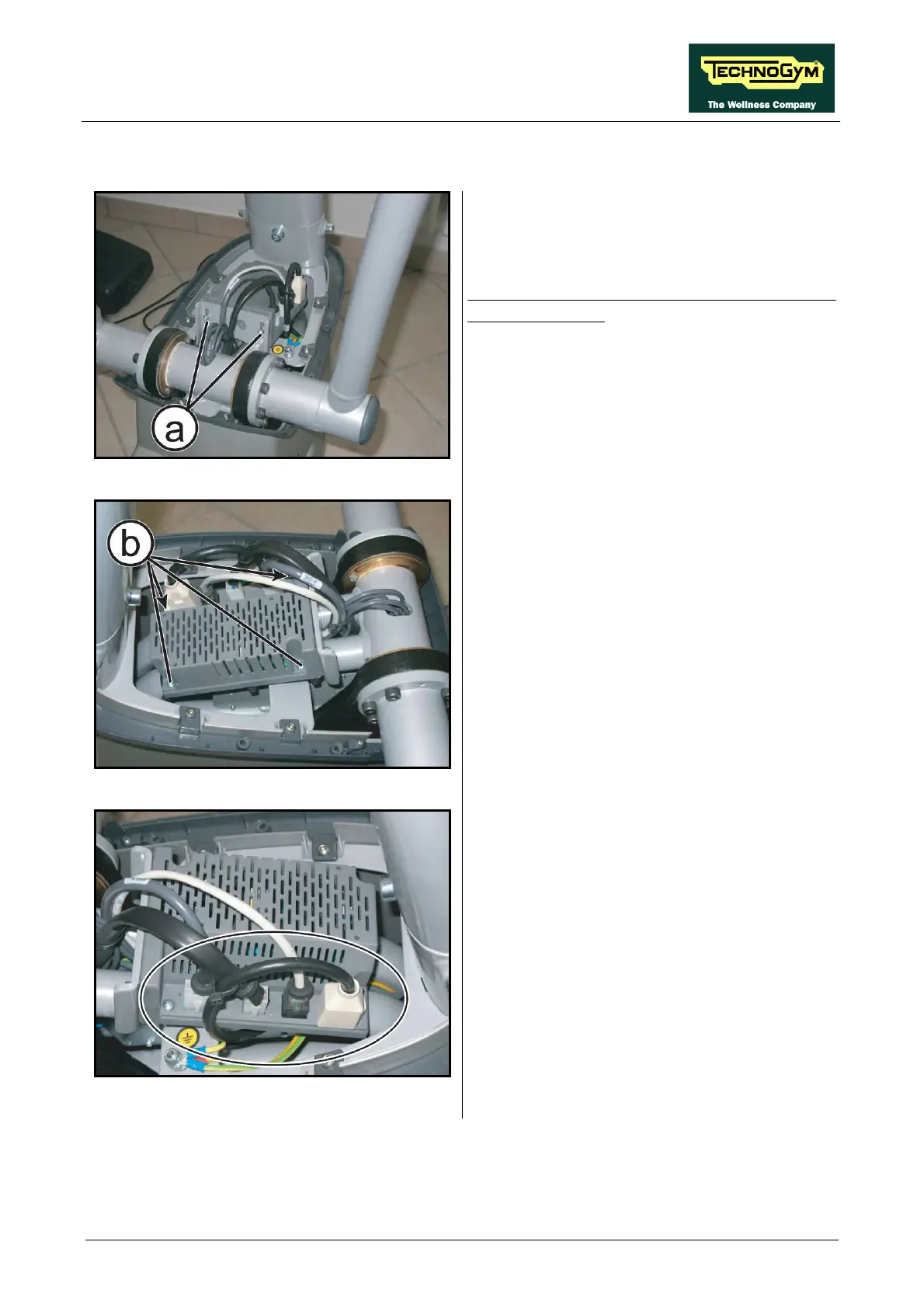

Figure 7.8-1
Carry out steps 1-2 of procedure:
7.7.2. "Brake
box cover guard”.
1. Back off the 2 screws (a) using a 4mm
hexagonal wrench.
Figure 7.8-2
2. Back off the screw (b) using a medium
Phillips screwdriver.
3. Remove the cover plate from the electrical
box.
Figure 7.8-3
4. Unplug the 4 connectors indicated in the
figure at left.
5. Remove the electrical box.
To reassemble the electrical box, carry out the
above steps in reverse order.
