SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.26
7.11. PLATFORM LEVER DISASSEMBLY

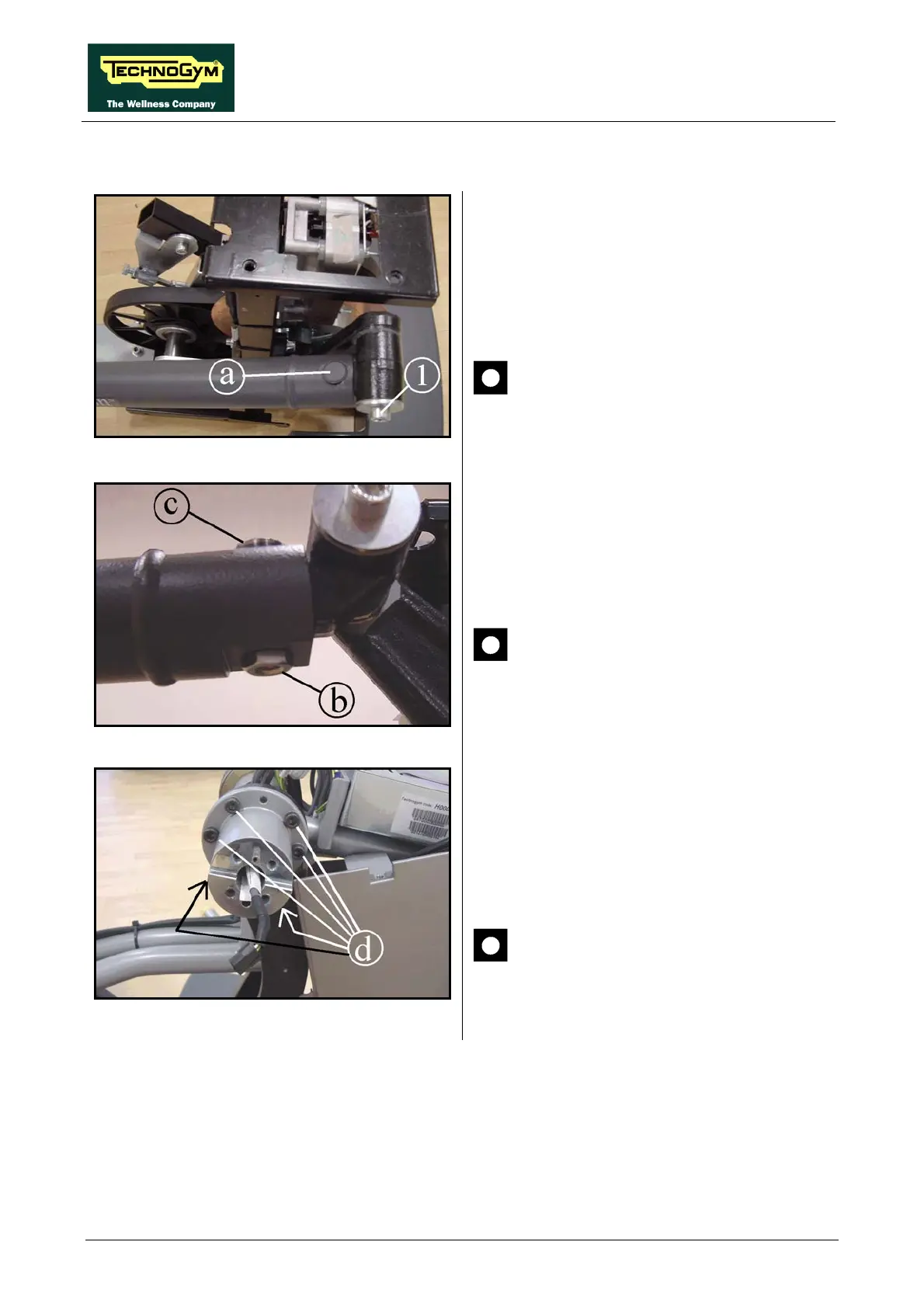

Figure 7.11-1
Carry out the operations described in
paragraph: 7.7.2. “Brake box cover guard” and
7.7.3. “Front guards”.
1. Remove the cap (a).
ATTENTION: If the screw (1) is backed
off, during reassembly, apply a drop of
Loctite thread compound and lock down
using a torque wrench setting of 44 Nm.
Figure 7.11-2
2. Back off the nut (b) on the lower part of the
lever, using a 17mm hexagonal wrench.
3. Back off the screw (c), using a 8mm
hexagonal wrench.
ATTENTION: During reassembly, lock
down the screw (c) using a torque wrench
setting of 40 Nm, and lock down nut (b)
using a setting of 30 Nm.
Figure 7.11-3
4. Using a 6mm hexagonal wrench, back off the
6 screws (d) securing the bushing assembly
that connects to the upper lever.
5. Remove the bushing assembly from the
machine frame.
ATTENTION: During reassembly, lock
down the screws (d) using a torque
wrench setting of 38 Nm.
Continued on following page
→
