SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.30
7.13. DISASSEMBLING THE BELTS

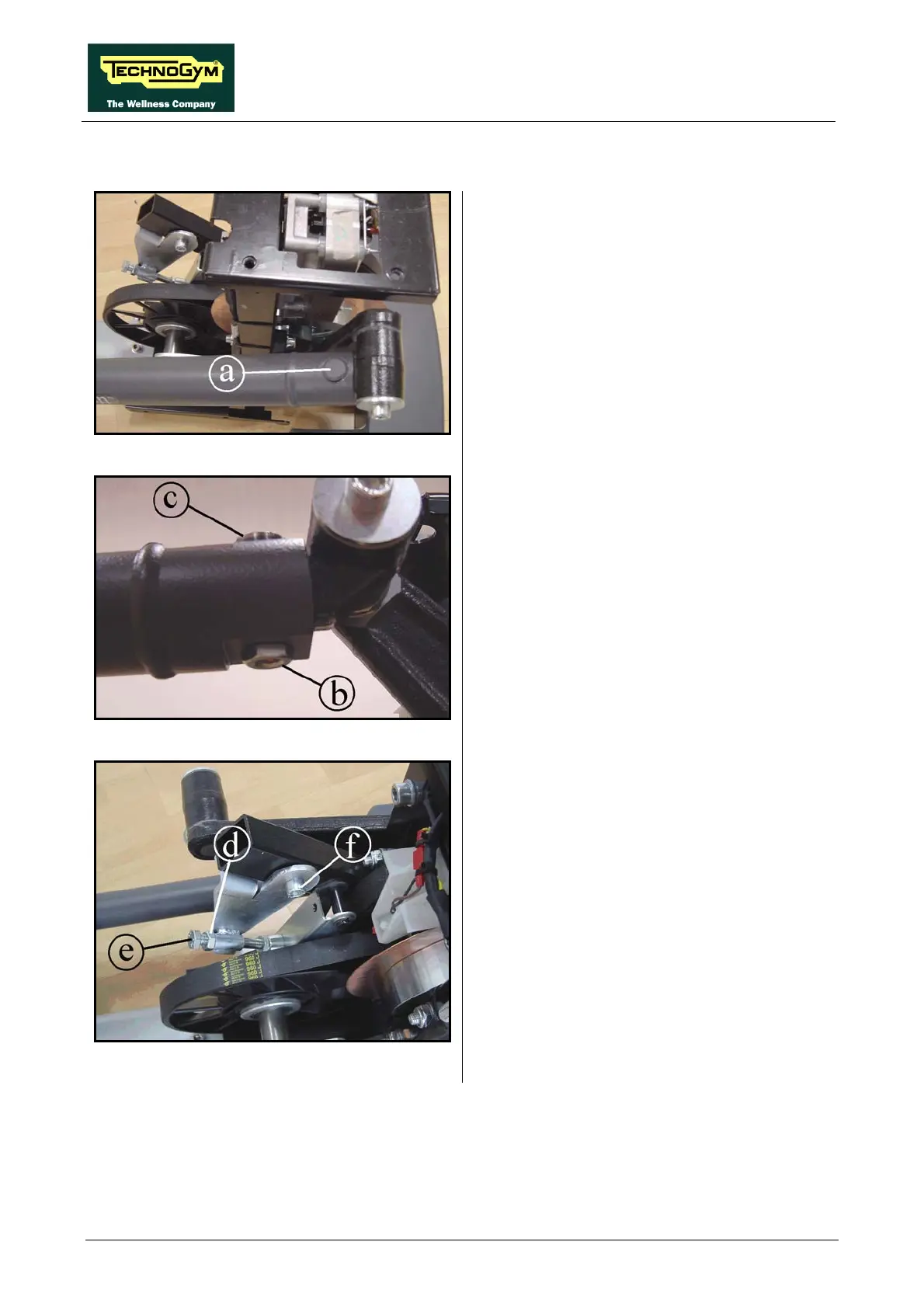

Figure 7.13-1
Carry out the operations described in
paragraph: 7.12. “Brake winding disassembly”.
1. Rem
ove the cap (a).
Figure 7.13-2
2. Back off the nut (b) on the lower part of the
lever, using a 17mm hexagonal wrench.
3. Back off the screw (c), using a 8mm
hexagonal wrench.
Figure 7.13-3
4. Back off the lock-nut (d) and back off the
screw (e) of the front tensioning mechanism,
using a 17mm wrench.
5. Back off the screw (f), using a 8mm
hexagonal wrench.
6. Remove the front tensioning mechanism.
Continued on following page
→
