SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.25
7.10. LONG HANDLEBAR LEVERS DISASSEMBLY

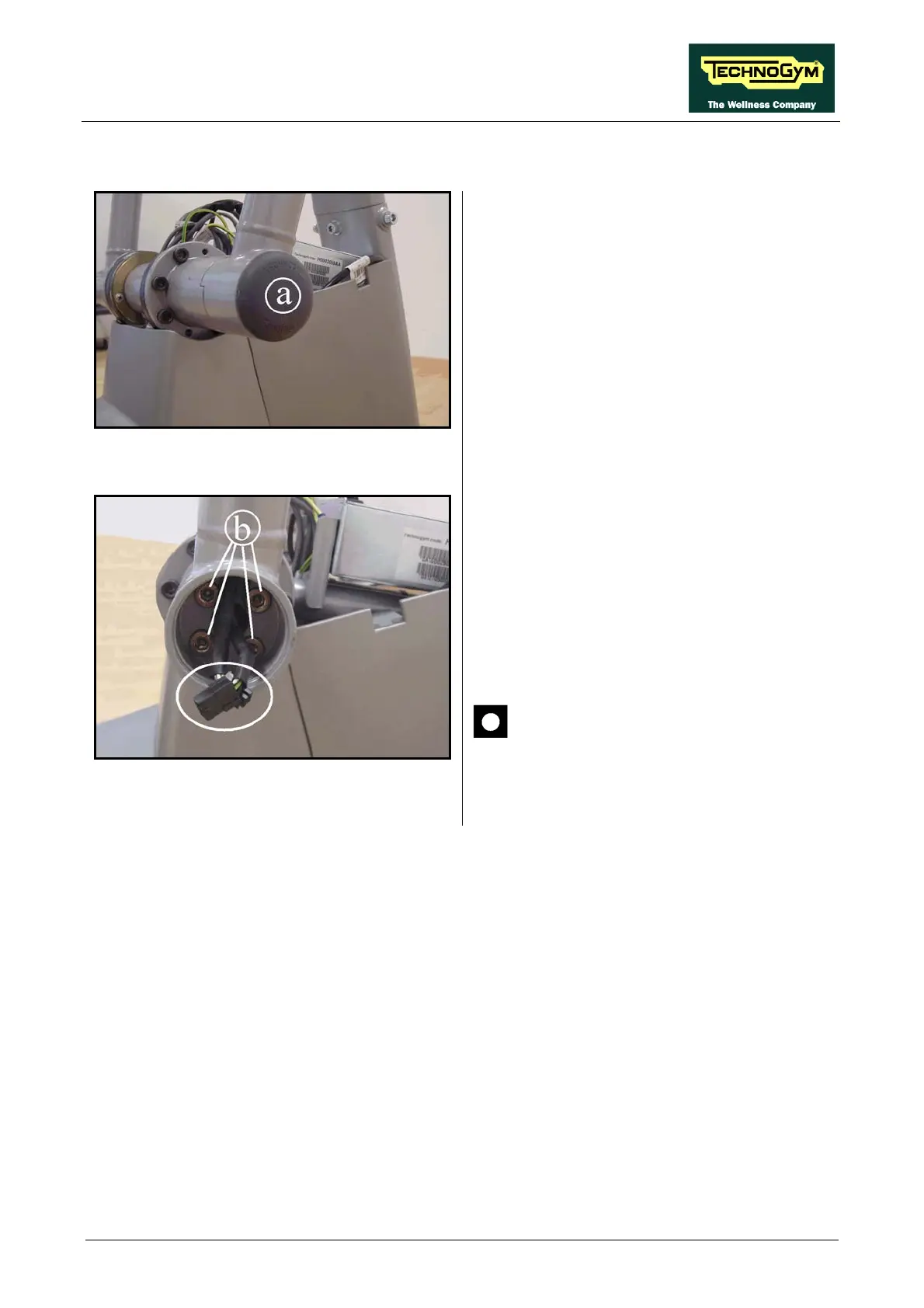

Figure 7.10-1
1. Remove the plastic cap (a), using a
screwdriver to force it outward.
Figure 7.10-2
2. Unplug the connector indicated in the figure.
3. Back off the 4 screws (b) using a 6mm Allen
wrench.
4. Pull out the lever from the machine frame.
To reassemble the lever, carry out the above
steps in reverse order.
ATTENTION: During reassembly, apply
a drop of Loctite thread compound and
lock down the screws (b) using a torque
wrench setting of 37 Nm.
