Technogym Synchro Excite 700 - Primary Shaft Disassembly; Powered Models (500, 700 and 700 WTV)

SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.33
7.14. PRIMARY SHAFT DISASSEMBLY
7.14.1. POWERED MODELS (500, 700 AND 700WTV)

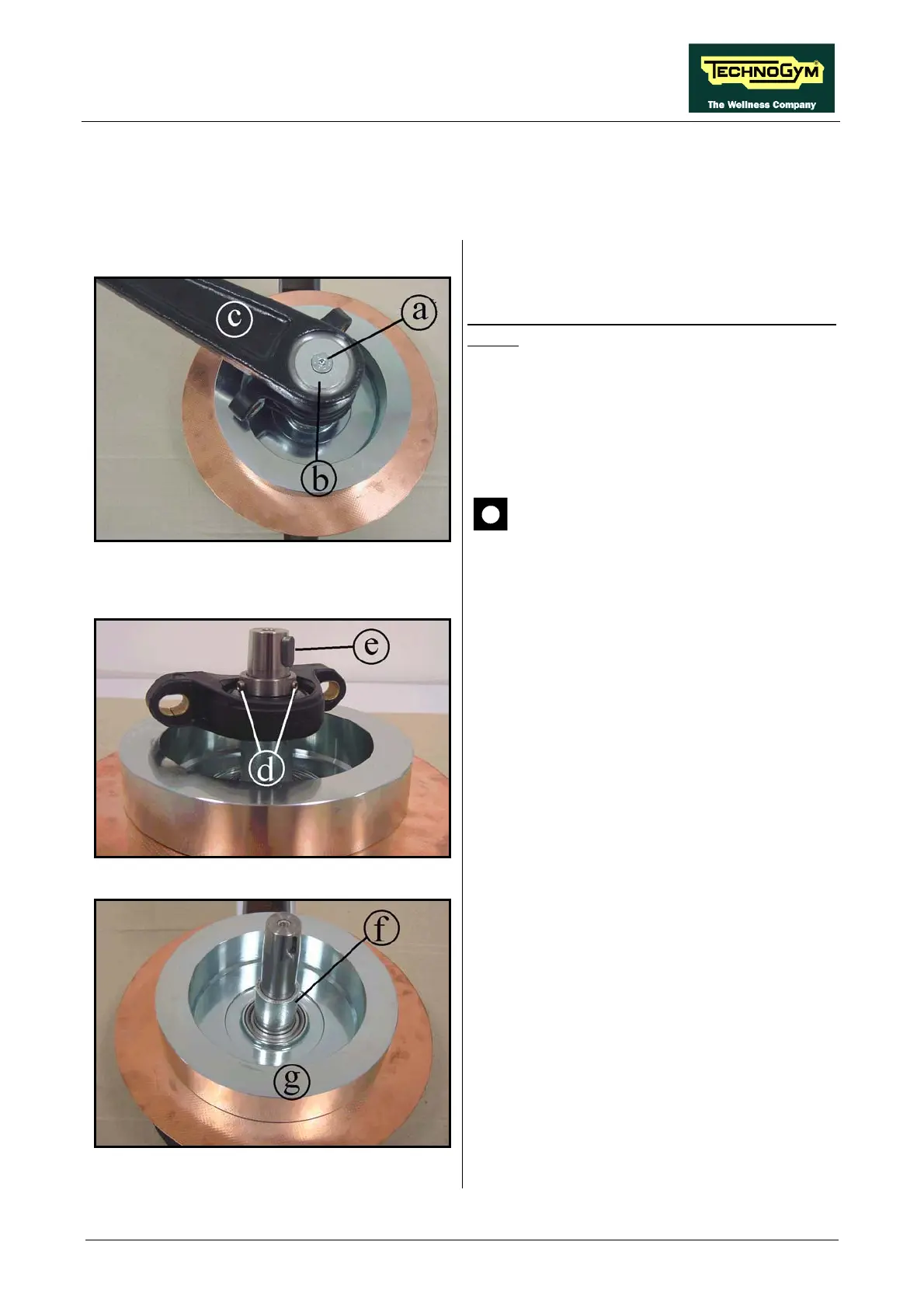

Figure 7.14-1
Carry out the operations described in paragraph
7.13. “Disassembling the belts” as far as step 12.
Place the primary shaft assembly on a work
bench:
1. Back off the screw (a), using a 5mm
hexagonal wrench, and remove the washer
(b).
2. Remove the crank c using an extractor tool.
ATTENTION: During reassembly, lock
down the screw (a) using a 35-Nm torque
wrench, applying a drop of Loctite thread
compound.
Figure 7.14-2
3. Back off the 2 grub screws (d) using a 3mm
hexagonal wrench.
4. Remove the key (e).
5. Remove the bearing from the shaft.
Figure 7.14-3
6. Remove the spacer (f) and the flywheel
assembly (g) from the shaft.
Continued on following page →
