SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.2

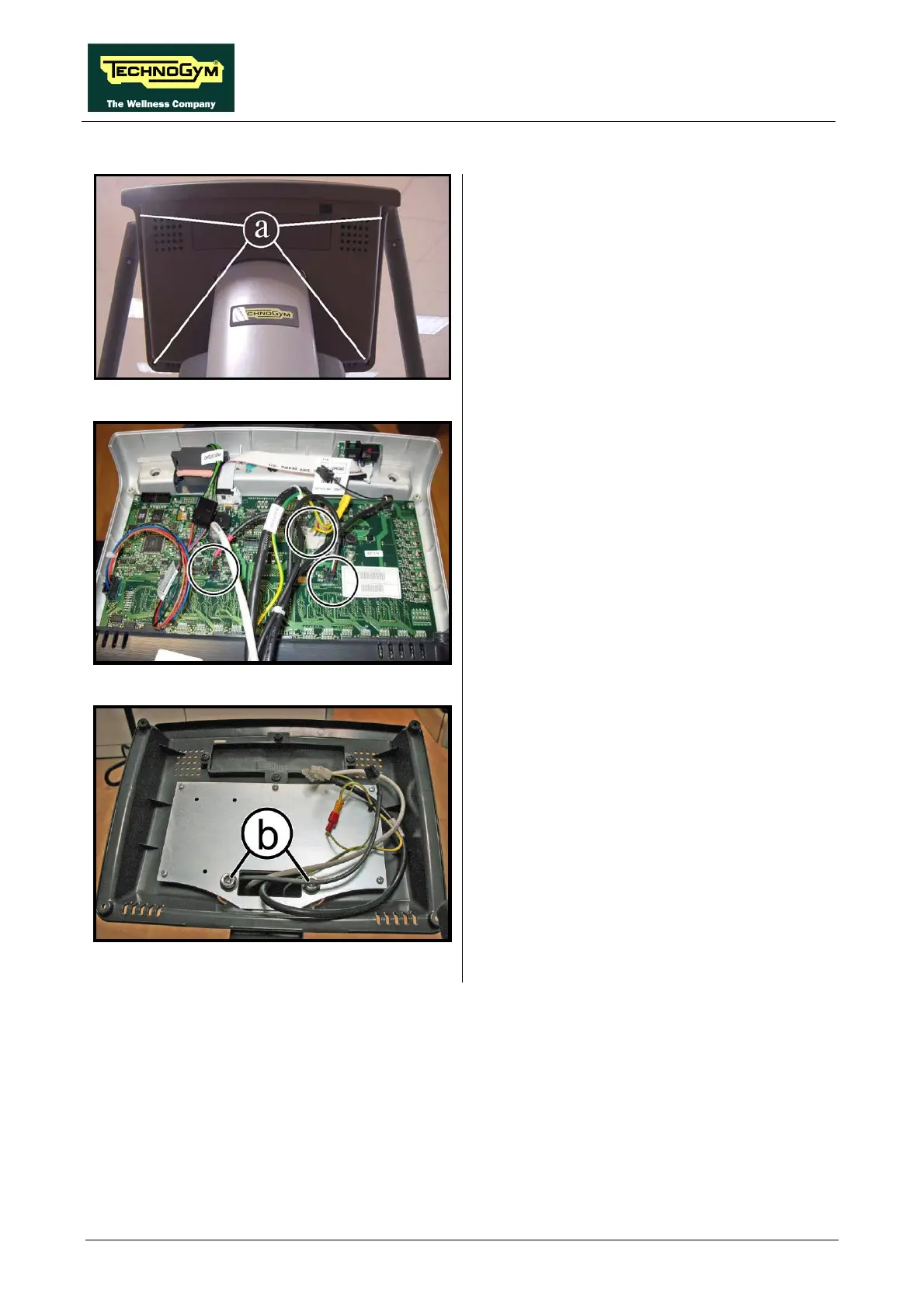

7.1.2. LED VERSION 700 AND 700SP
Figure 7.1-4
1. Turn off the machine and unplug the mains
lead from the wall outlet (Only for 700).
2. Back off the 4 screws (a) using a medium
Phillips screwdriver.
Figure 7.1-5
3. Unplug the connectors as indicated in the
figure at left [CN9-CN1-CN6-CN5-CN4].
4. Remove the display.
Figure 7.1-6
5. Back off the 2 screws (b), using an 8mm Hex
wrench, to remove the rear display support.
To reassemble the display, carry out the above
steps in reverse order.
