SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.15
7.5. FIXED HANDGRIPS DISASSEMBLY

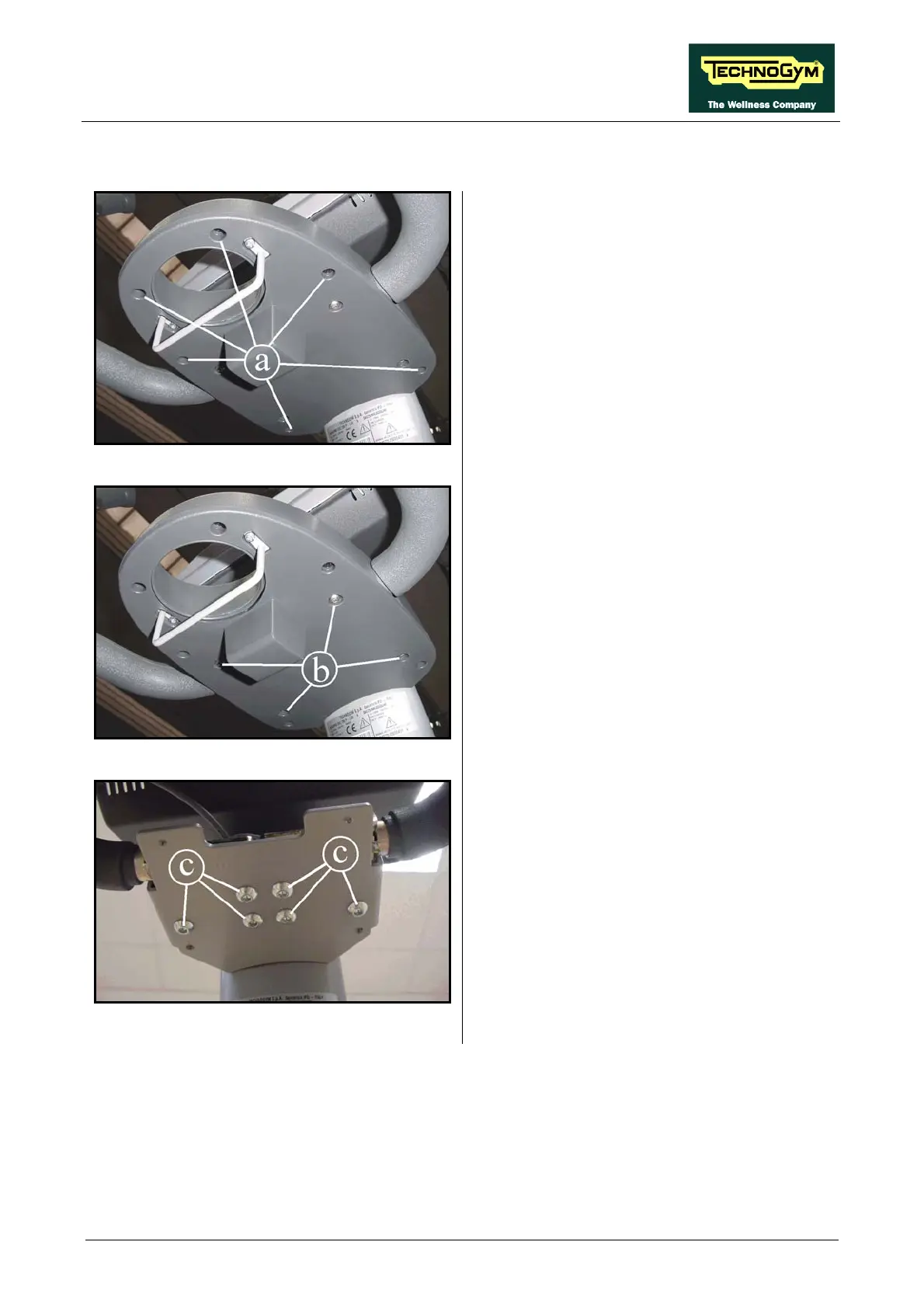

Figure 7.5-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 6 screws (a) using a medium
Phillips screwdriver.
3. Remove the upper tray.
Figure 7.5-2
4. Back off the 4 screws (b) using a 4mm
hexagonal wrench.
5. Remove the lower tray bracket.
Figure 7.5-3
6. Back off the three screws (c) using a 6mm
hexagonal wrench (back off the three screws
on the left or right, depending on which
handgrip is being disassembled).
7. Remove the handgrips.
To reassemble the handgrips, carry out the
above steps in reverse order.
