SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 8.4
8.4. THE MACHINE IS NOT FLAT
This problem may be due to the positioning of the machine on a not flat surface. To resolve this
problem is necessary to act on foot adjustment.

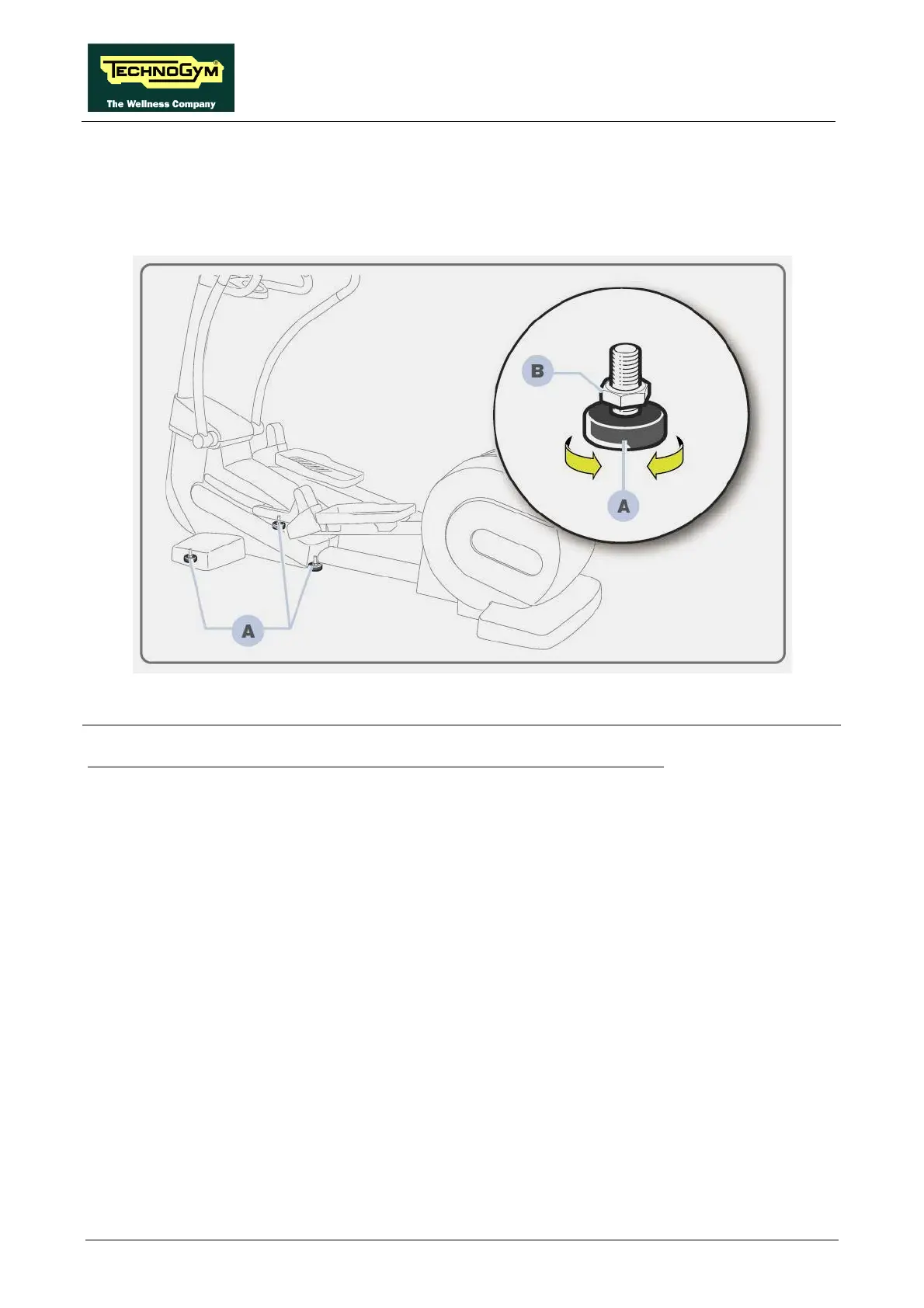

Figure 8.4-1
The equipment is levelled by adjusting the two front feet and the central foot:
1. Screw the foot (a) in or out until the frame is in a stable position.
2. Adjustment made to tighten the counter-nut (b).
