7.14.2. SELF POWERED MODELS (500SP AND 700SP)

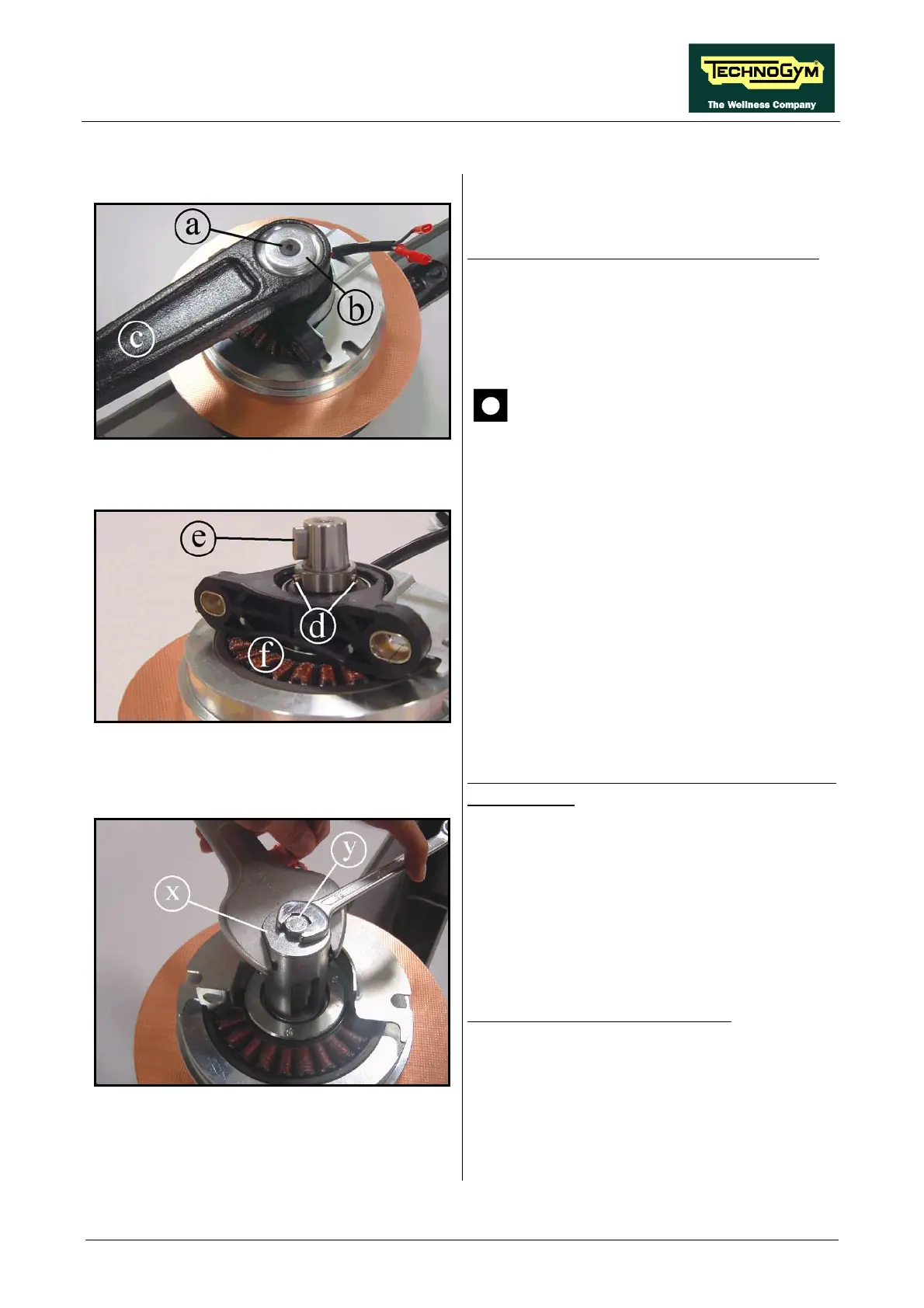

Figure 7.14-5
Carry out the operations described in paragraph 7.13.
“Disassembling the belts” as far as step 12.
Place the primary shaft assembly on a work bench:
1. Back off the screw (a), using a 5mm
hexagonal wrench, and remove the washer
(b).
2. Remove the crank c using an extractor tool.
ATTENTION: During reassembly, lock
down the screw (a) using a 35-Nm torque
wrench, applying a drop of Loctite thread
compound.
Figure 7.14-6
3. Back off the 2 grub screws (d) using a 3mm
hexagonal wrench.
4. Remove the key (e).
5. Remove the bearing from the shaft.
6. Remove the stator assembly (f) from the
shaft.
Figure 7.14-7
To disassemble the shaft you need to have the kit
R0003810AA.
1. Insert the special tool x on the shaft
2. Lock down the screw y on the shaft using 13 mm
wrench until the pressure is removed from the
snap ring.
3. Using the special pliers, remove the snap ring
from its seat, sliding it upward.
4. Back off the screw and remove part b.
5. Pull the components out of the assembly.
To reassemble, proceed as follows:
1. Take a look at Figure 7.14-5.
2. Position the snap ring on the shaft.
3. Insert the special tool x on the shaft, locking
down the screw y until the snap ring seat is
completely visible.
4. Push the snap ring into its seat with the help of a
screwdriver.
