7.7.2. BRAKE BOX COVER GUARD

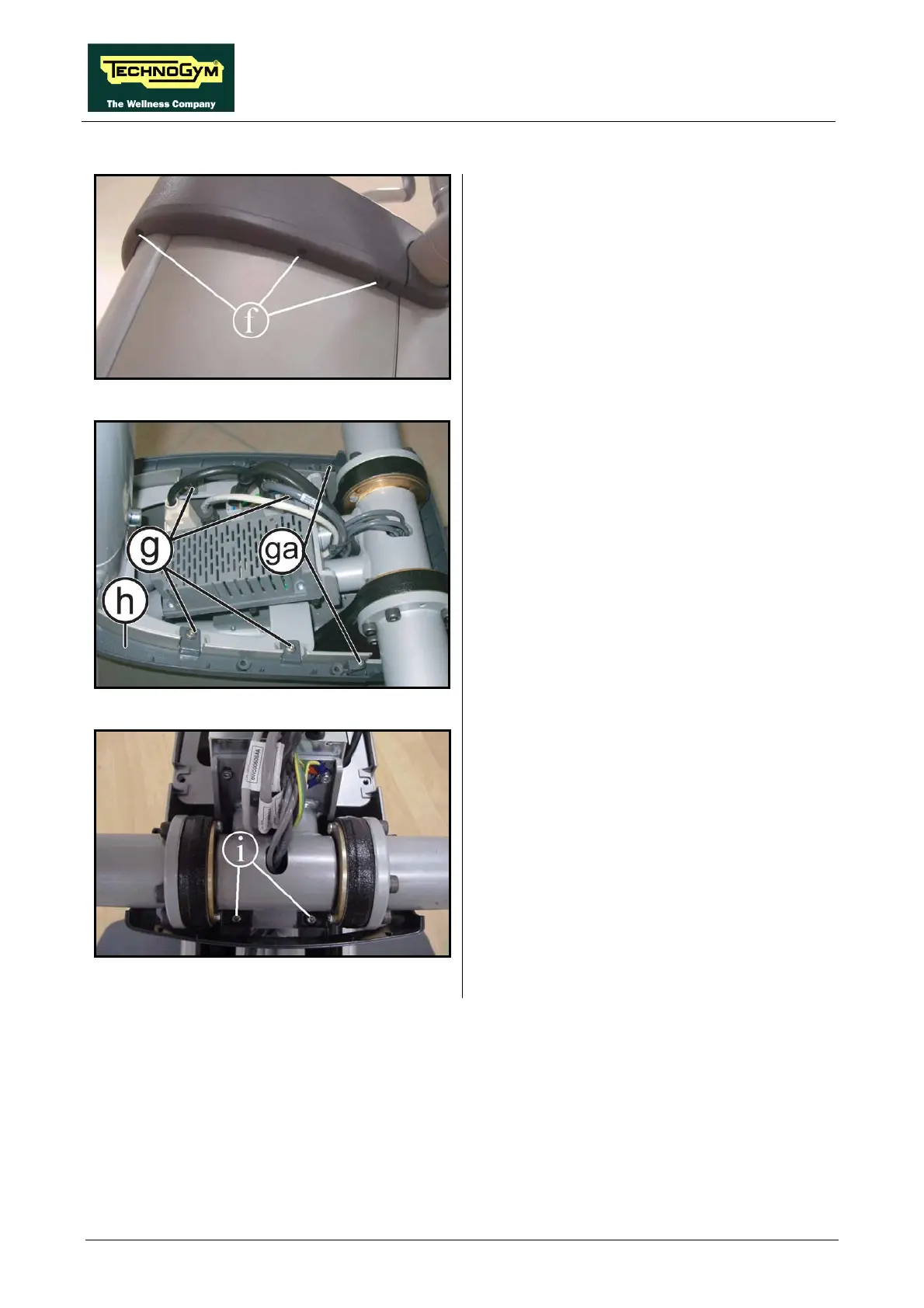

Figure 7.7-5
1. Back off the 3 screws (f) on both sides of the
machine, using a medium Phillips
screwdriver.
2. Lift the top cover along the display column.
Figure 7.7-6
3. Back off the 4 screws (g) using a 4mm
hexagonal wrench.
4. Back off the 2 screws (ga) using a medium
Phillips screwdriver.
5. Remove the front casing (h).
Figure 7.7-7
6. Back off the 2 screws (i) using a 4mm
hexagonal wrench.
7. Remove the rear frame.
