SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.1
7. DISASSEMBLY OF COMPONENTS
7.1. DISPLAY DISASSEMBLY
7.1.1. LED VERSION 500 AND 500SP

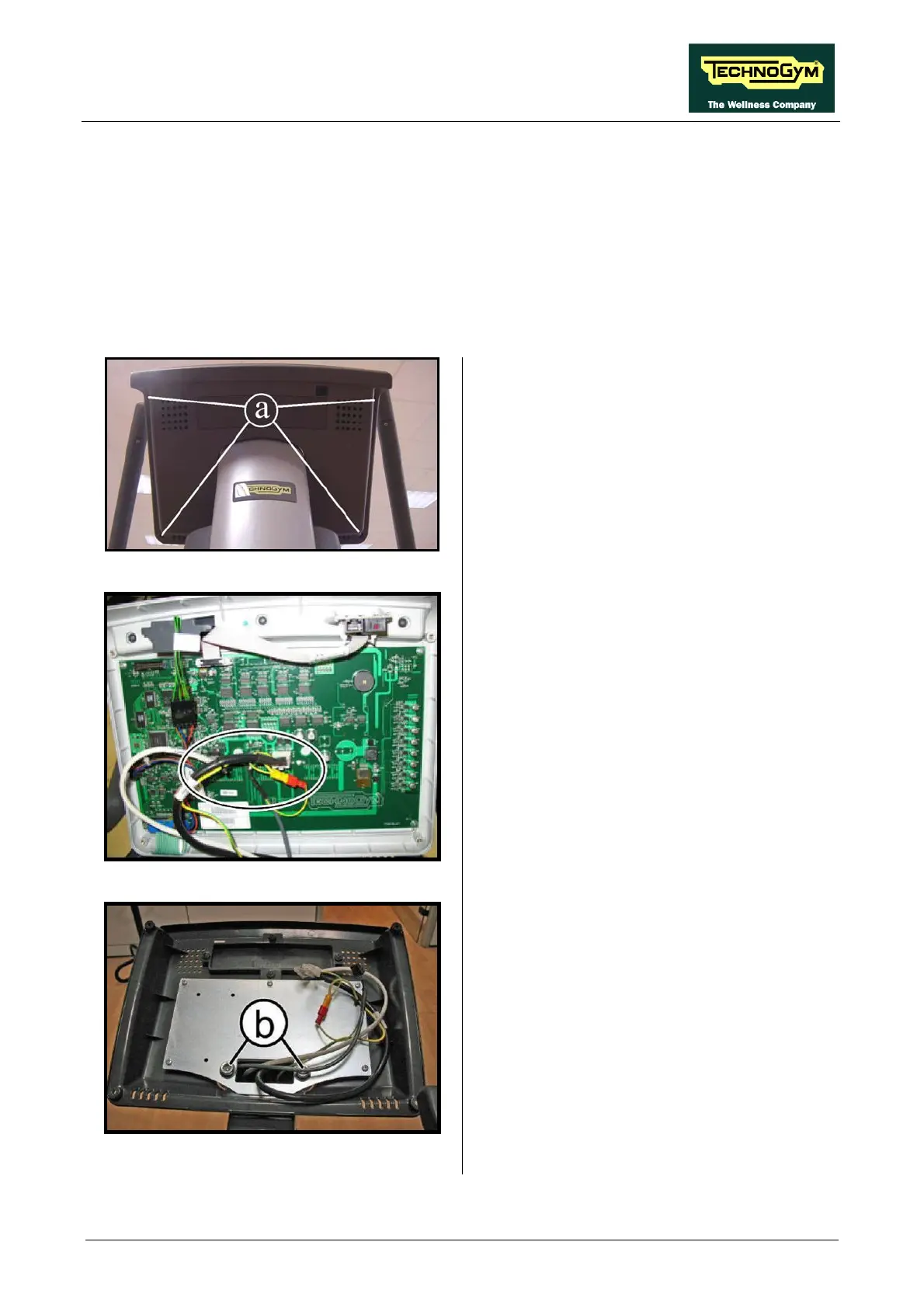

Figure 7.1-1
1. Turn off the machine and unplug the mains
lead from the wall outlet (Only for 500).
2. Back off the 4 screws (a) using a medium
Phillips screwdriver.
Figure 7.1-2
3. Unplug the connectors as indicated in the
figure at left [CN9-CN1-CN3].
4. Remove the display.
Figure 7.1-3
5. Back off the 2 screws (b), using an 8mm Hex
wrench, to remove the rear display support.
To reassemble the display, carry out the above
steps in reverse order.
