SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 4.3

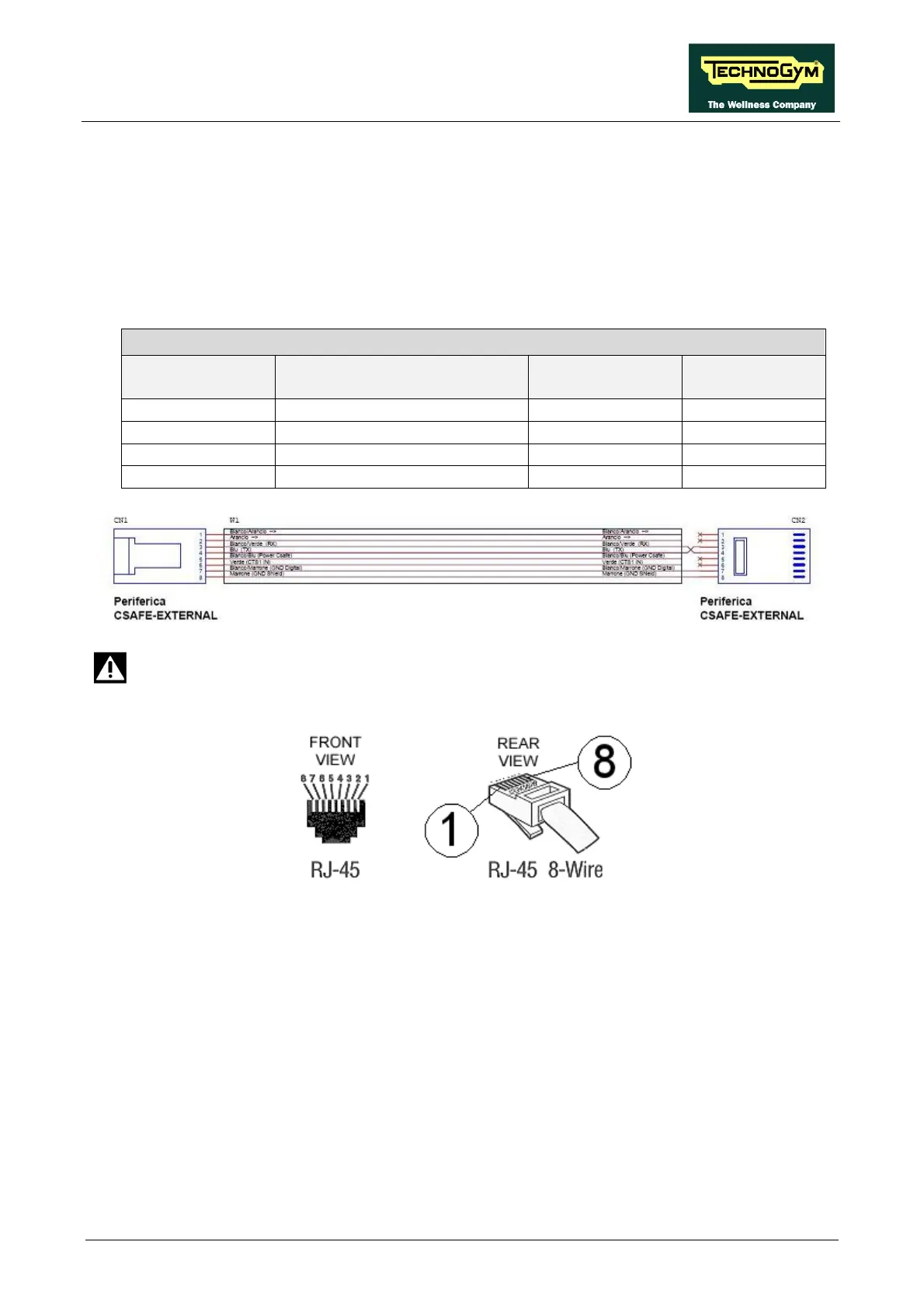

4.3. CABLE FOR EXCHANGING TV CHANNEL TUNING DATA
BETWEEN TWO MACHINES
The link for transferring the TV channel tuning data from one machine to the other is effected via a
special cable, which plugs into the RJ45 connectors of the CSafe boards.
The cable to use (code 0WC00644AA) must be wired as follows:
Cable CSafe Periferic
CSafe Board;
RJ45
Signal Colour CSafe Board;
RJ45
3 Tx White 4
4 Rx Brown 3
7 Digital Ground Green 7
8 Ground Shield Yellow 8
WARNING: for the numbering of the pins, on RJ45 connector, please refer to the diagram
below:
