SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.21
7.7.3. FRONT GUARDS

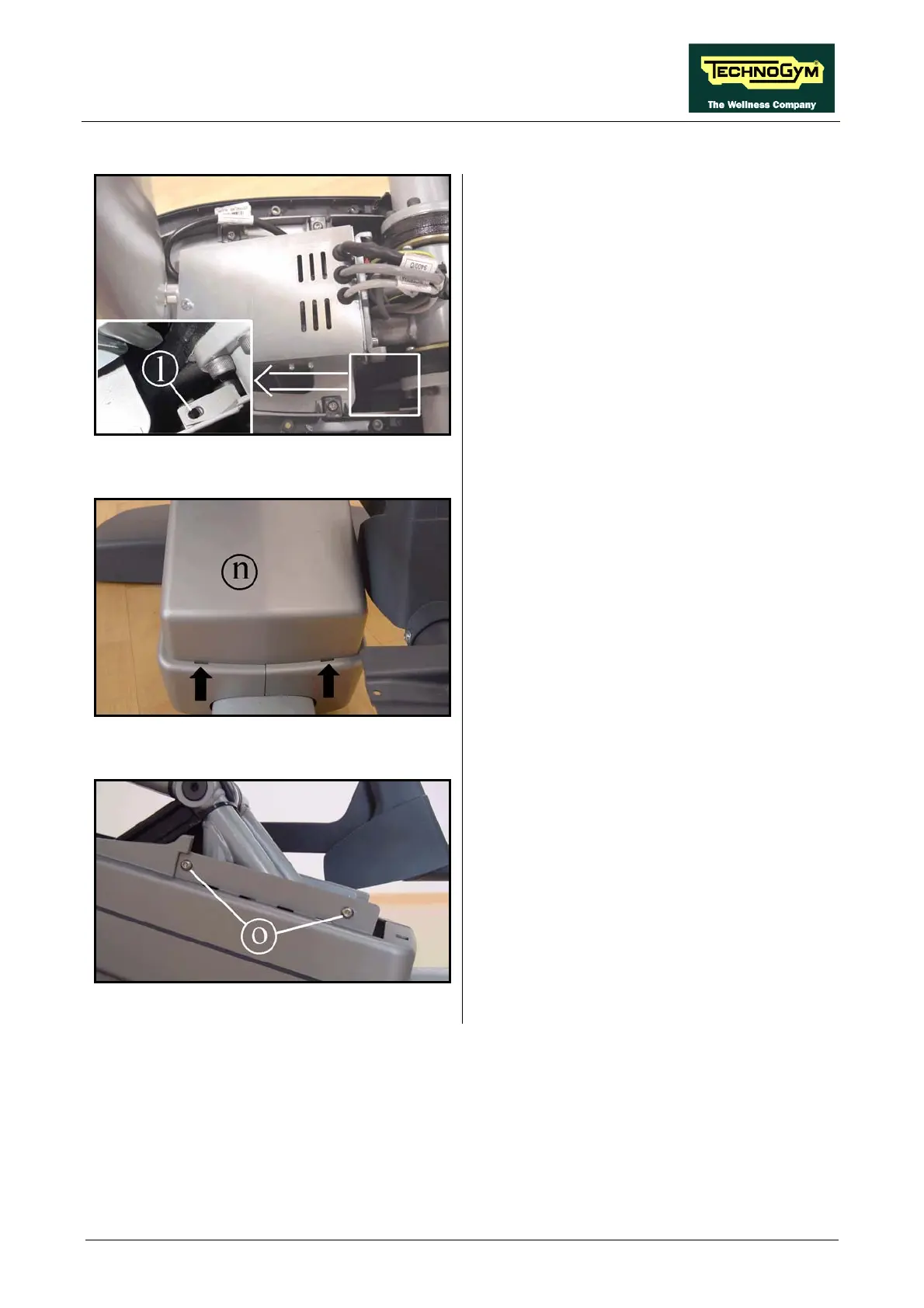

Figure 7.7-8
1. Working inside the front guard, back off the
screw (l) on each side of the machine, using a
Phillips screwdriver.
Figure 7.7-9
2. Remove the guard (n) by pushing the tabs in
the direction indicated by the arrows, and
simultaneously lifting it upward.
Figure 7.7-10
3. Back off the screws (o) on either side of the
machine using a 4mm hexagonal wrench.
Continued on following page
→
