SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.22

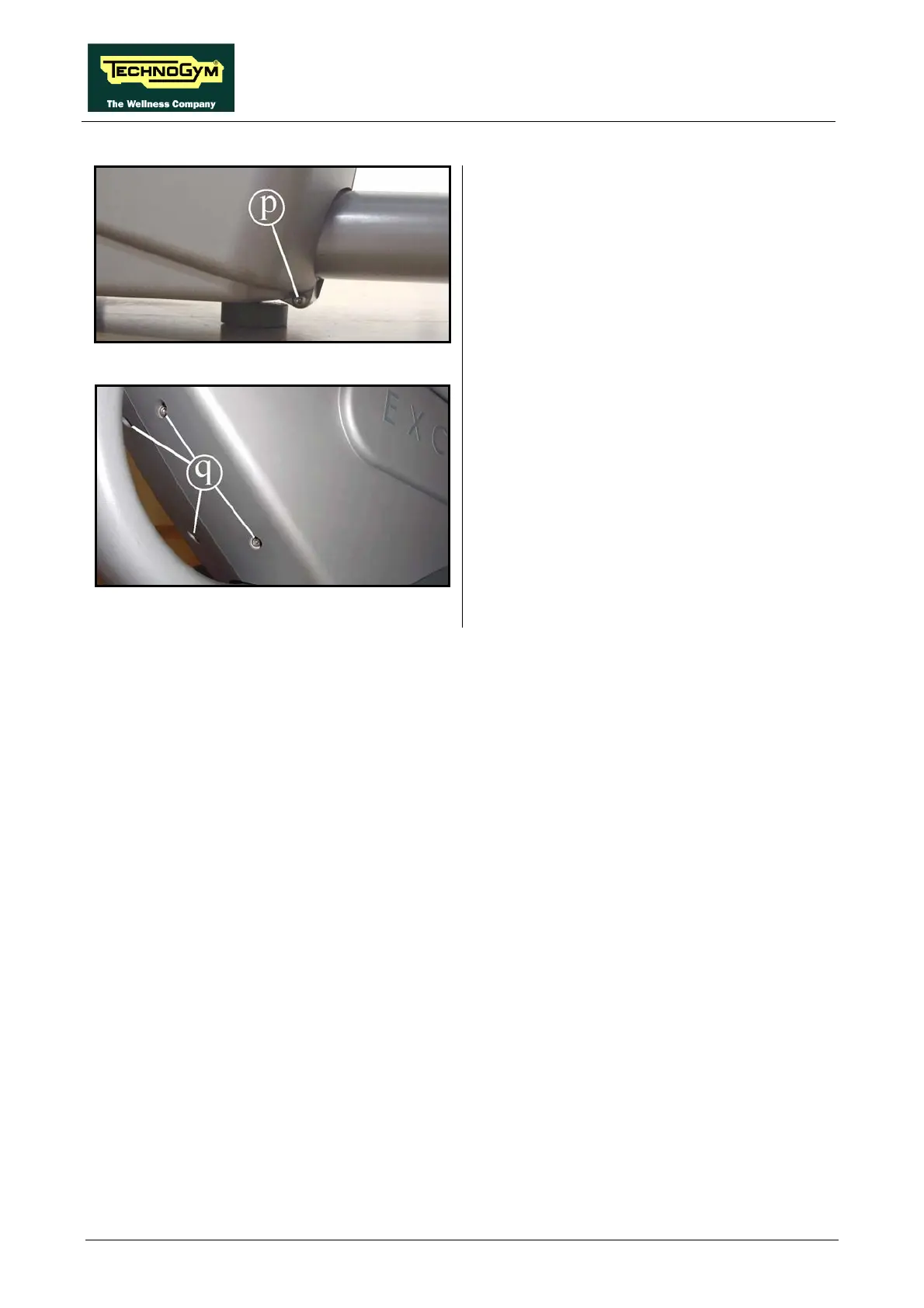

Figure 7.7-11
4. Back off the screws (p) on either side of the
machine using a 4mm hexagonal wrench.
Figure 7.7-12
5. Back off the 4 screws (q) using a 4mm
hexagonal wrench.
6. Remove the two front half guards.
To reassemble the guards, carry out the above
steps in reverse order.
