SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 8.3
8.3. BRAKE WINDING POSITION

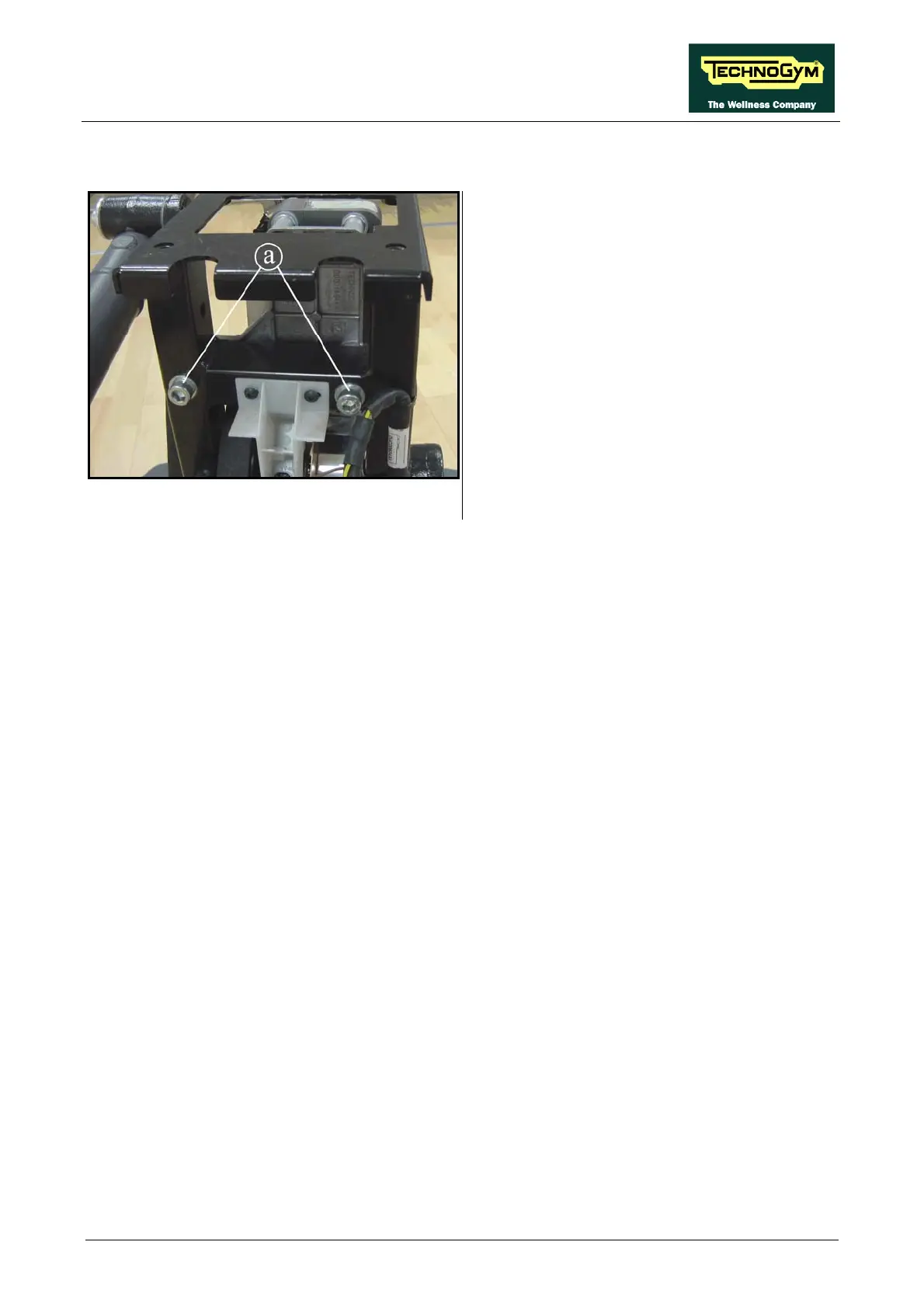

Figure 8.3-1
Carry out the operations described in
paragraph: 7.7.1. “Rear guard”.
1. Back off the 2 screws (a) and position the
brake winding support so that it is centred on
the copper disk, using a 1mm thickness
gauge.
2. Lock the screws back down.
