SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.38
7.15. SECONDARY SHAFT DISASSEMBLY

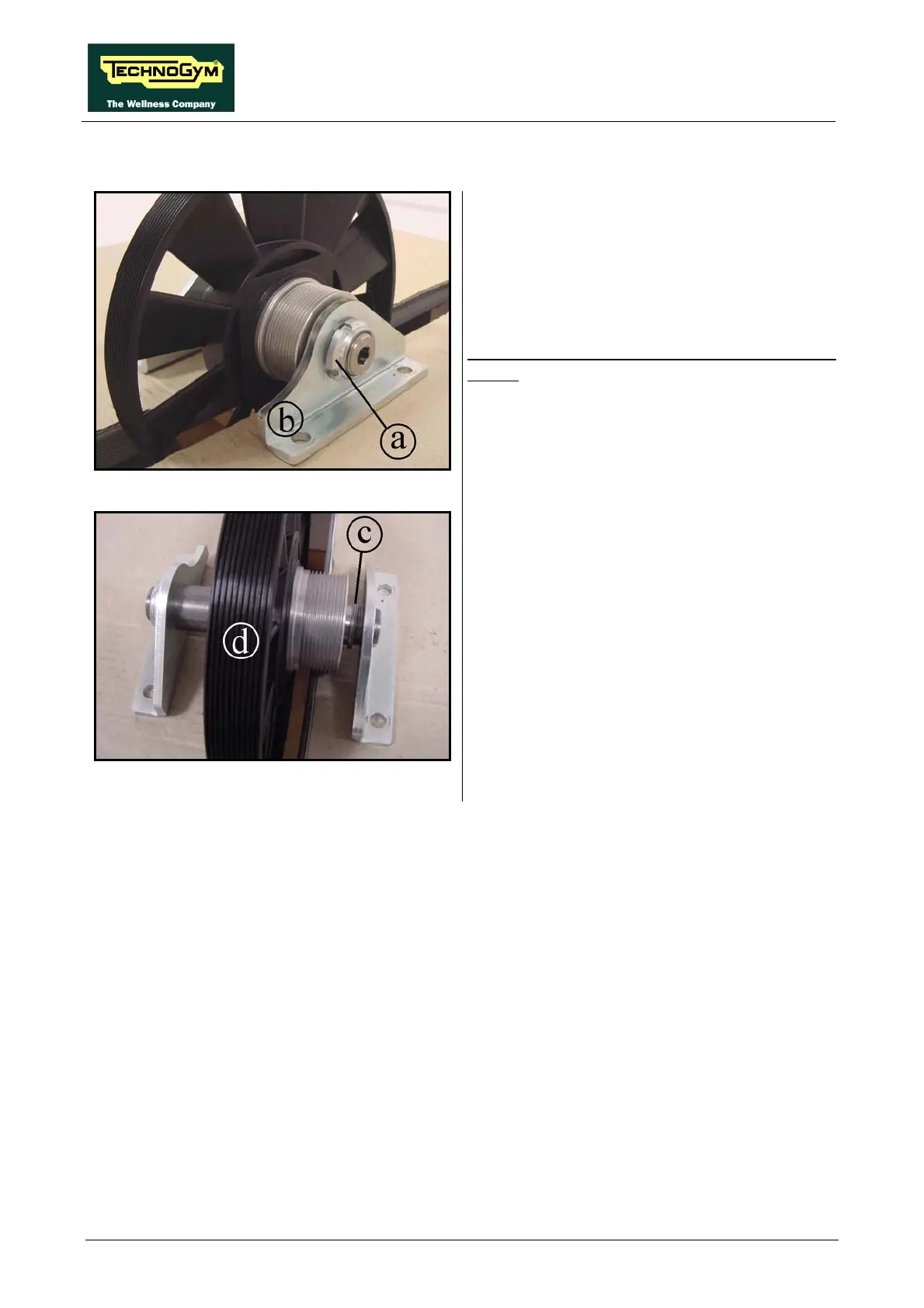

Figure 7.15-1
Carry out the operations described in paragraph
7.13. “Disassembling the belts” as far as step
10.
Place the secondary shaft assembly on a work
bench:
1. Back off the ring (a) using a 25mm ring nut
spanner and remove the support (b).
Figure 7.15-2
2. Remove the three spacers c and the pulley
assembly (d).
To reassemble the secondary shaft assembly,
carry out the above steps in reverse order.
