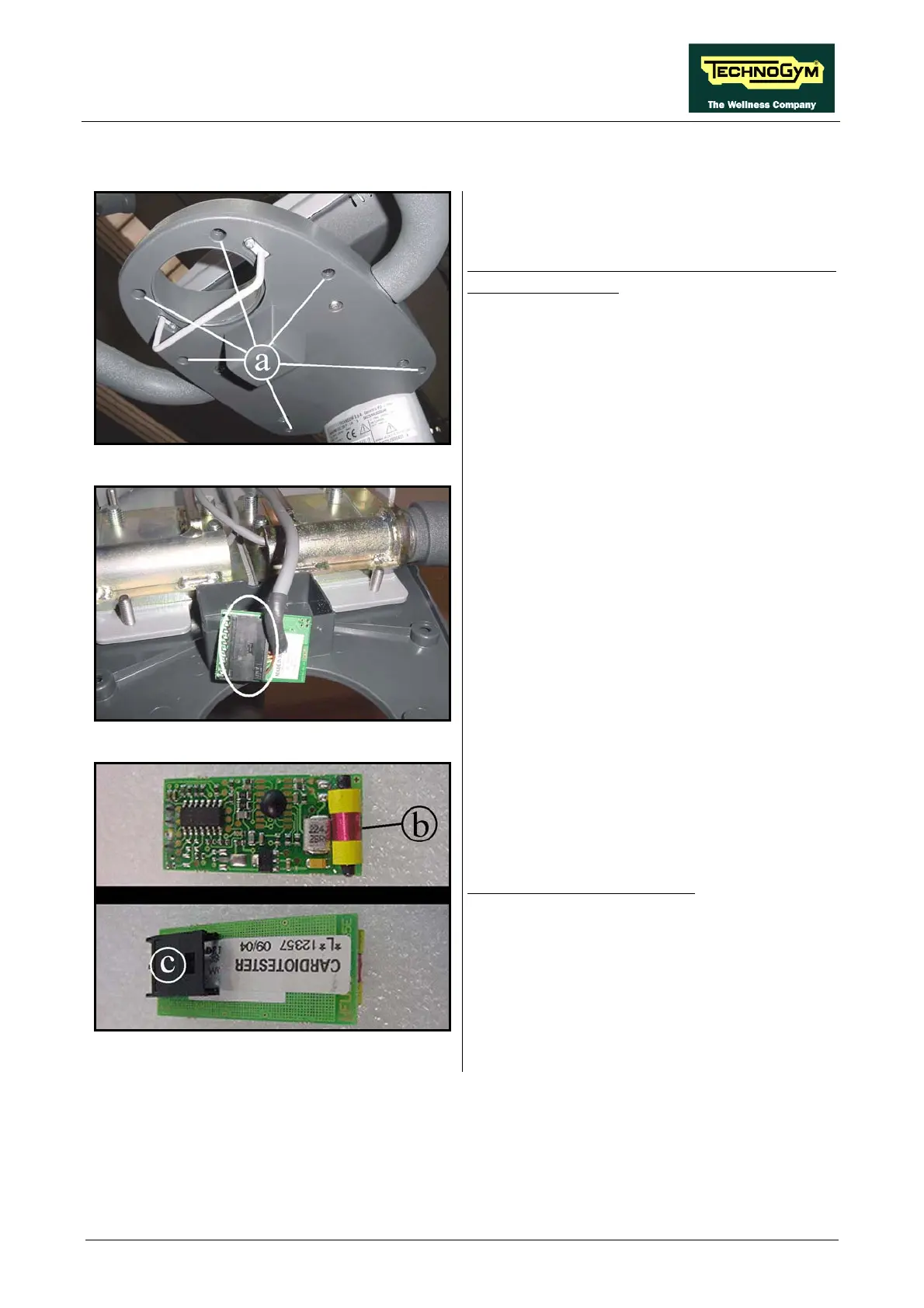

7.4. CARDIO RECEIVER DISASSEMBLY
Figure 7.4-1
Turn off the machine and unplug the mains lead
from the wall outlet.
1. Back off the 6 screws (a) using a medium
Phillips screwdriver.
2. Lift up the upper tray bracket.
Figure 7.4-2
3. Unplug the connector indicated in the figure.
4. Remove the receiver.
Figure 7.4-3
To assemble the new receiver:
1. On the HFU receiver, there are the receiving
coil (b) and the connector (c).
Continued on following page
→
