SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 4.2

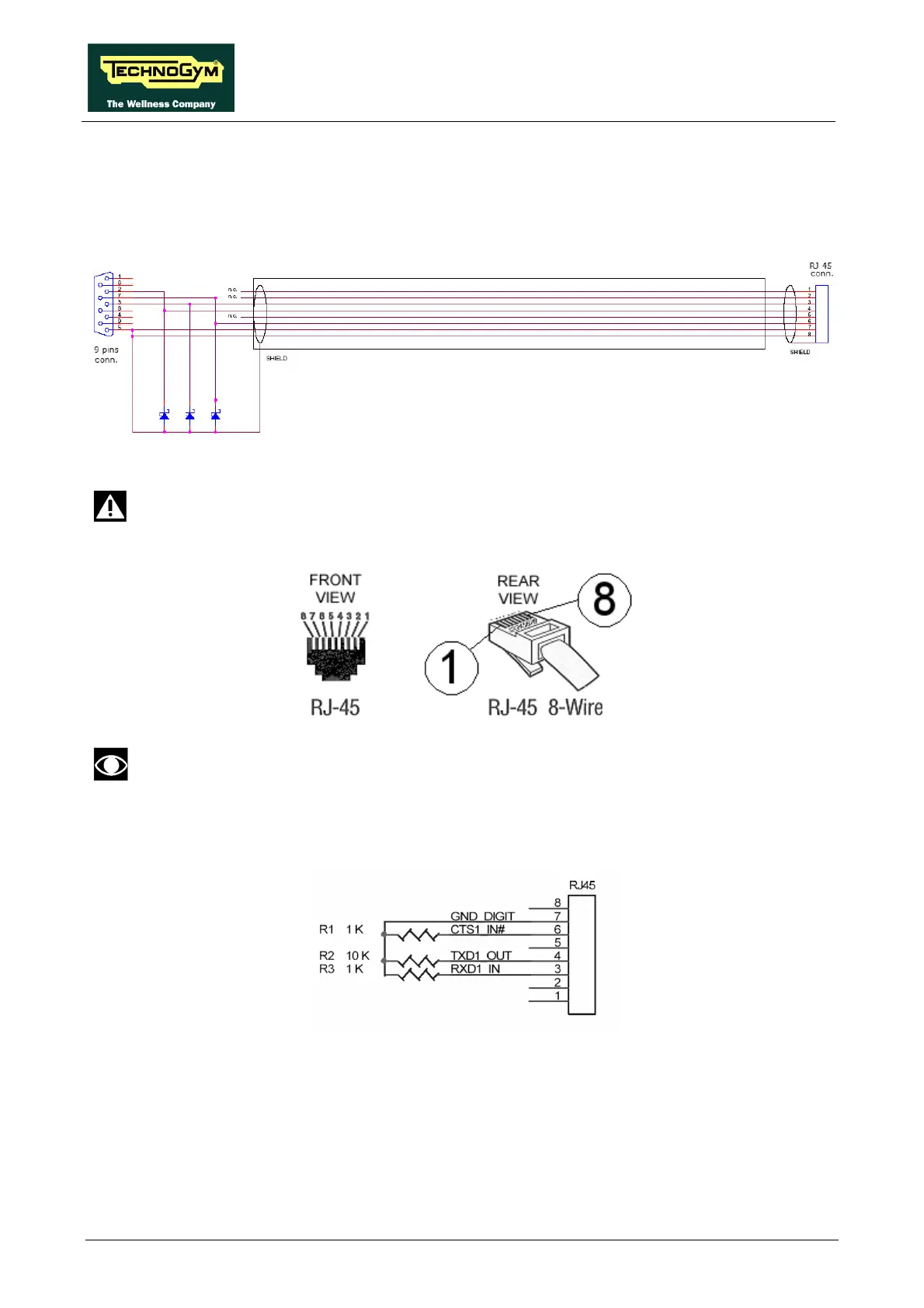

4.2. PC LINK FOR PROGRAMMING
The machine can be connected to a PC for programming by means of the RJ45 connector on the
CSafe board.
WARNING: for the numbering of the pins, on RJ45 connector, please refer to the diagram
below:
When programming the machine sometimes it is necessary to fit plug into the free RJ-45 port
on the back of the display, to avoid any type of interference during the operation.
The wiring diagram of the RJ-45 plug is as follows:
Programming cable and plug can be ordered using the code H0002534AB.
