7.16. SPEED SENSOR DISASSEMBLY
Only for powered version (500, 700 e 700WTV).

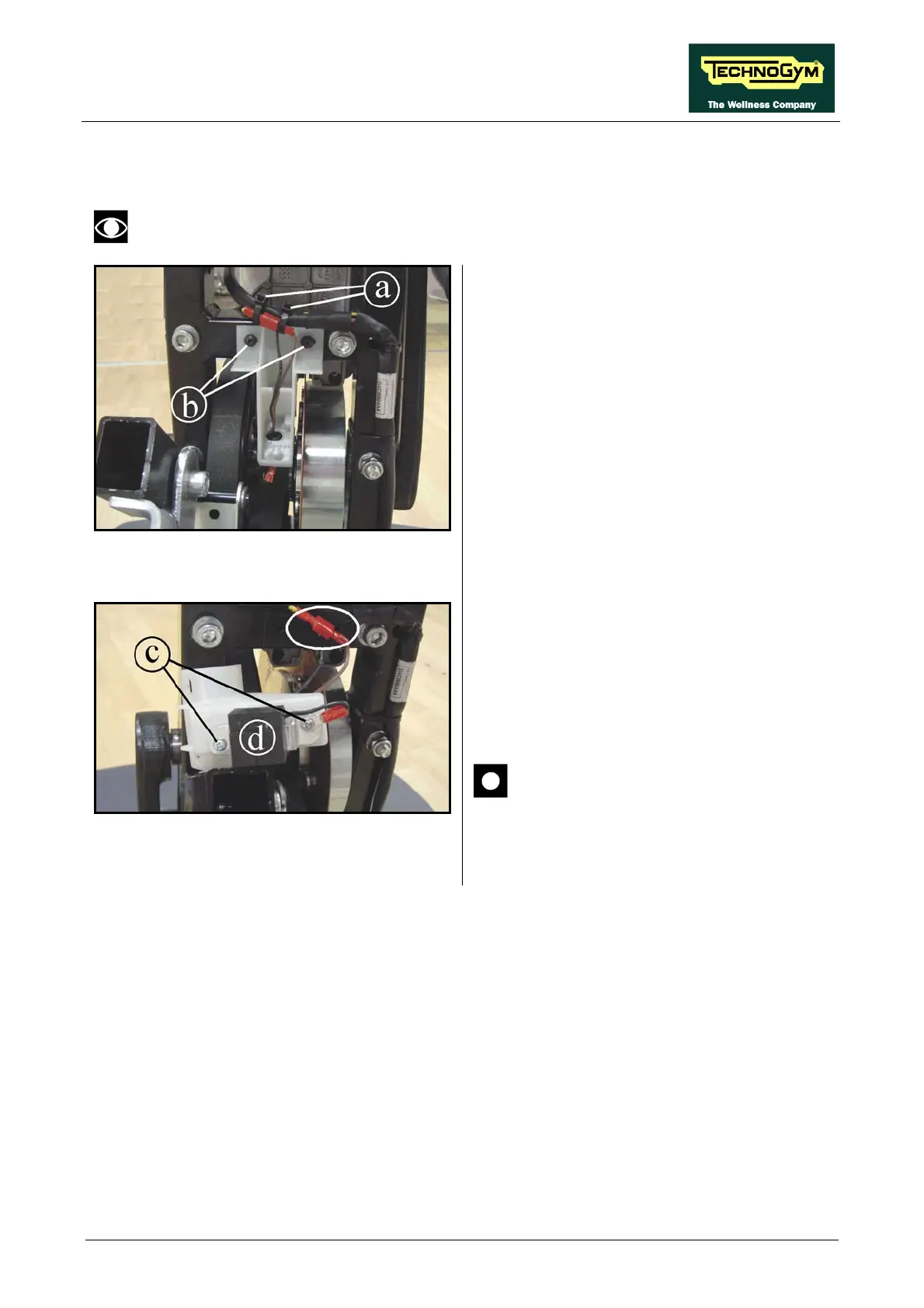

Figure 7.16-1
Carry out the operations described in paragraph
7.7. “Guards” for removing the rear guards.
1. Cut the two cable ties (a).
2. Back off the 2 screws (b) using a 3mm
hexagonal wrench.
3. Remove the speed sensor and its support.
Figure 7.16-2
4. Unplug the Faston indicated in the figure.
5. Back off the two screws (c) using a Phillips
screwdriver, and remove the sensor (d).
To reassemble the speed sensor, carry out the
above steps in reverse order.
ATTENTION: After completing the
reassembly, adjust the position of the
sensor as described in paragraph 8.2.
“Speed sensor position”.
