SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.4
7.2. DISPLAY BOARDS DISASSEMBLY
7.2.1. 500 AND 500SP VERSION

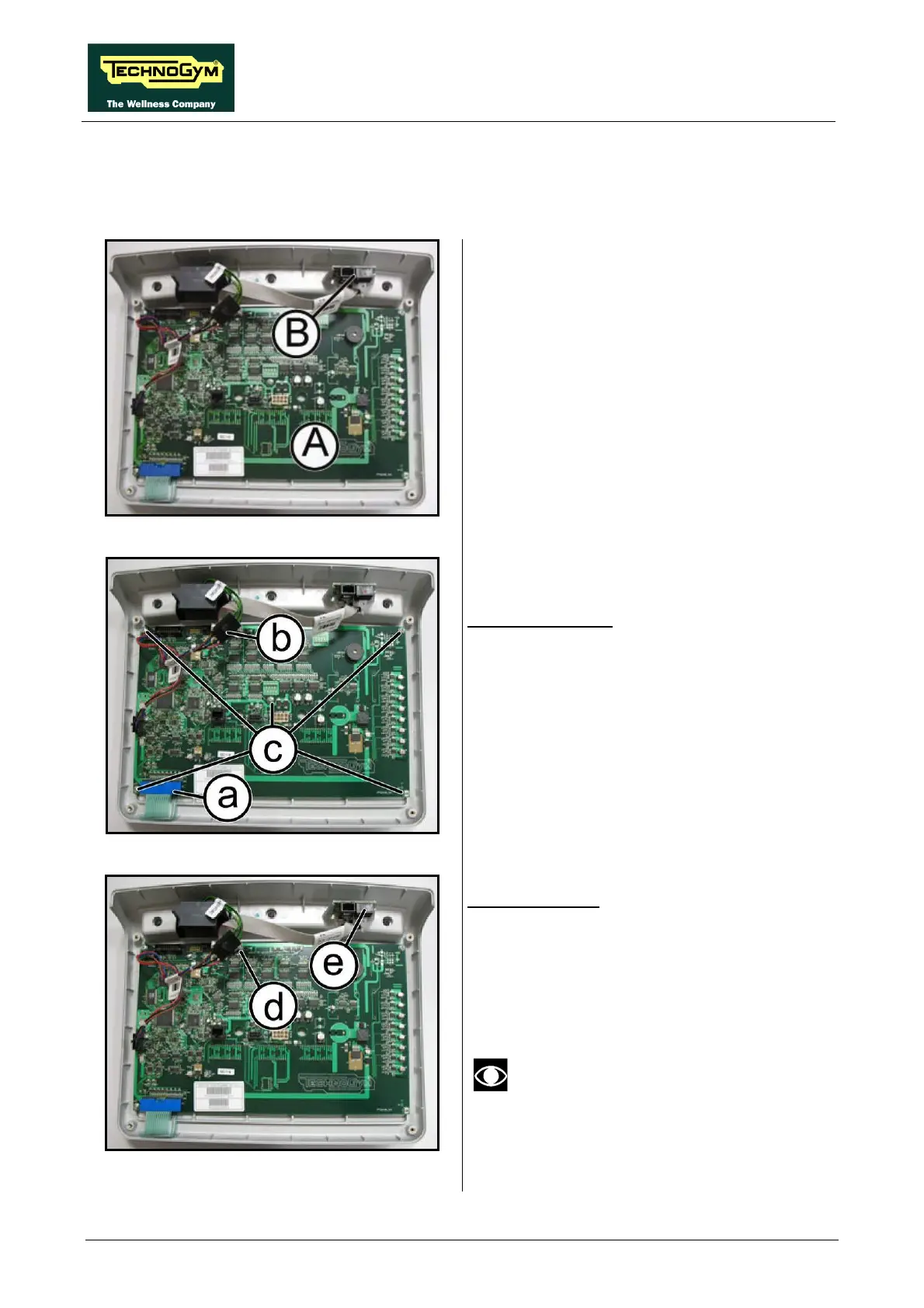

Figure 7.2-1
Carry out the operations described in
paragraphs: Errore. L'origine riferimento non
è stata trovata.“Errore. L'origine riferimento
non è stata trovata.”.
Then place the display on a work bench. It is
now possible to disassemble its circuit boards:
• The Display Board (A);
• The C-Safe Board (B).
Figure 7.2-2
Display Board (A):
1. Disconnect connectors (a) [CN2] of the
keyboard and (b) [CN8] of the CSafe board
from the Display board.
2. Back off the 5 screws (c) with a medium
Phillips screwdriver.
3. Remove the circuit board.
Figure 7.2-3
CSafe Board (B):
1. Disconnect connector (d) [CN8] of the C-
Safe from the Display board.
2. Remove the circuit board (e), slipping it off
from the top.
Use again the hot glue to fix the
connectors, where necessary.
To reassemble the circuit boards, carry out the
above steps in reverse order.
