SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.18
7.7. GUARDS DISASSEMBLY
7.7.1. REAR GUARD

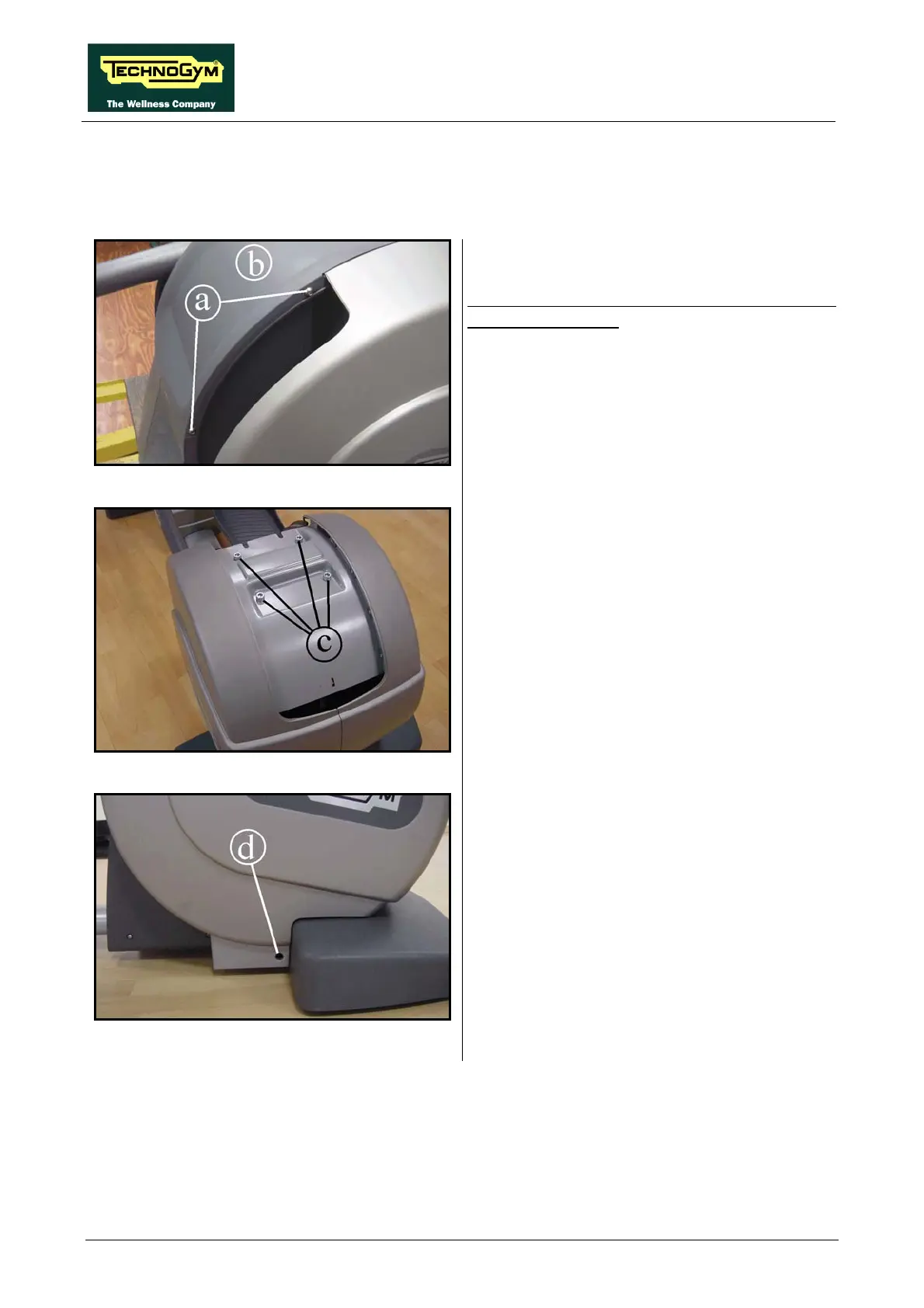

Figure 7.7-1
Turn off the machine and unplug the mains lead
from the wall outlet.
1. Back off the screws (a), on both sides of the
machine, using a 4mm hexagonal wrench.
2. Remove the top cover (b).
Figure 7.7-2
3. Back off the 4 screws (c) using an 8mm
hexagonal wrench.
Figure 7.7-3
4. Back off the screw (d), on both sides of the
machine, using a 4mm hexagonal wrench.
5. Remove the rear guard.
Continued on following page
→
