SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.19

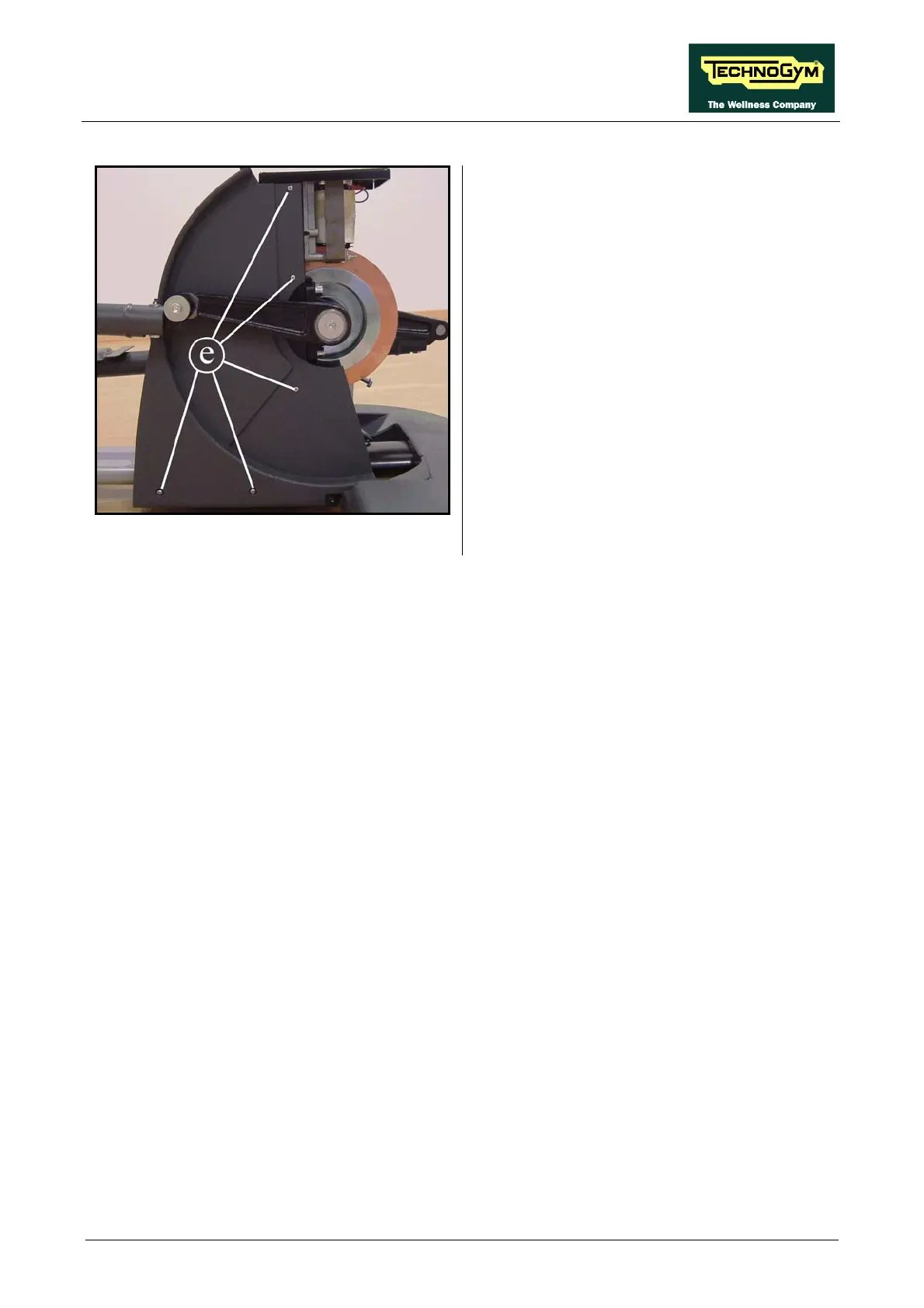

Figure 7.7-4
6. Back off the 5 screws (e), on both sides of
the machine, using a medium Phillips
screwdriver for the three top screws and a
4mm hexagonal wrench for the two lower
ones.
7. Remove the guard.
