SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.37

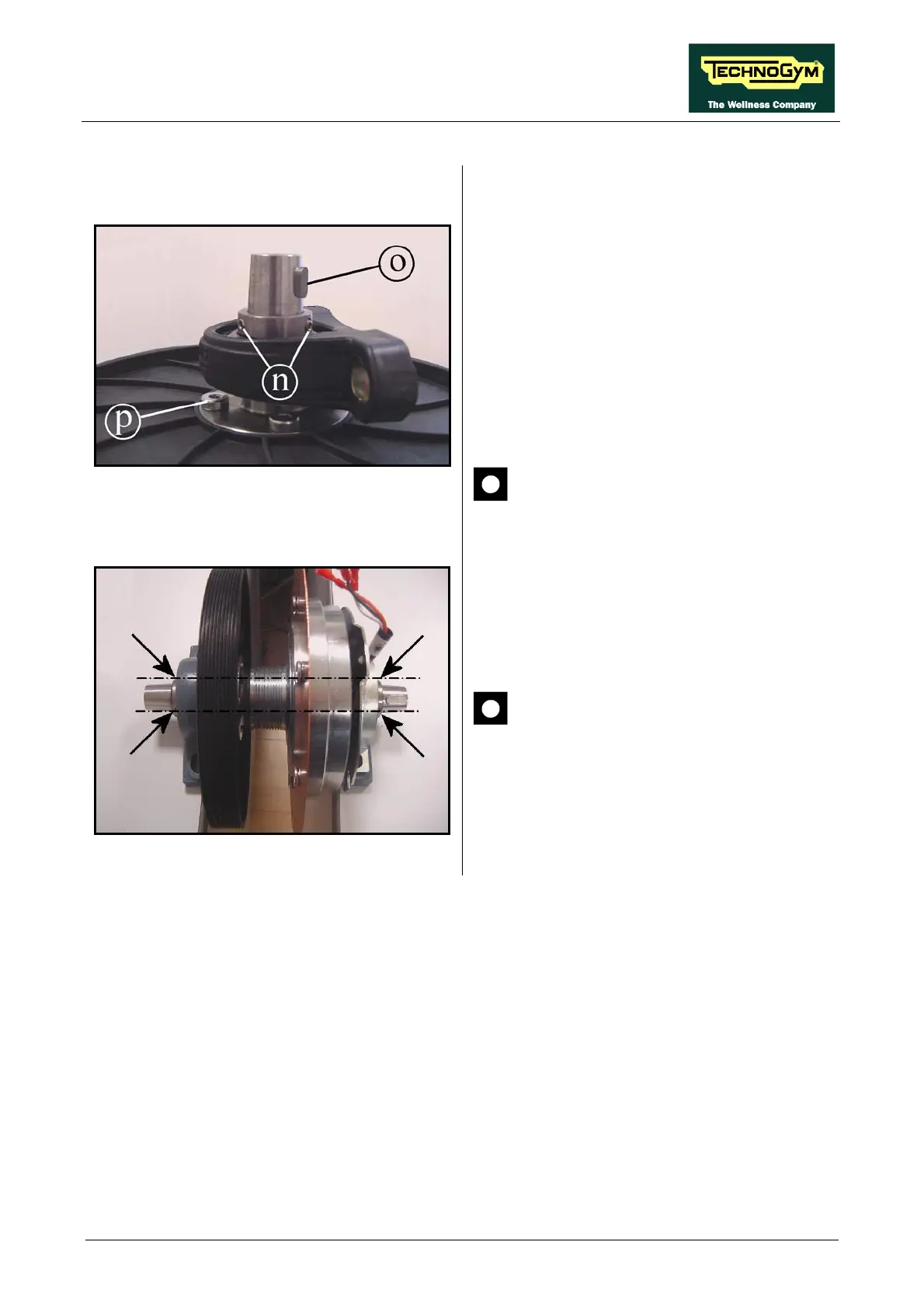

Figure 7.14-11
3. Back off the 2 grub screws (n) using a 3mm
hexagonal wrench.
4. Remove the key (o).
5. Remove the bearing from the shaft.
6. Back off the 4 screws (p) using a 5mm
hexagonal wrench, holding the
corresponding nuts in place using a 13mm
wrench.
7. Remove the pulley from the shaft.
ATTENTION: During reassembly, lock
down the screws (p) using a torque
wrench setting of 22 Nm.
Figure 7.14-12
To reassemble the primary shaft assembly, carry
out the above steps in reverse order.
ATTENTION: Screw the grub screws
indicated in the picture by the arrows,
which are fixing the bearings, keeping
them aligned on both the sides of the shaft.
