SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 7.36

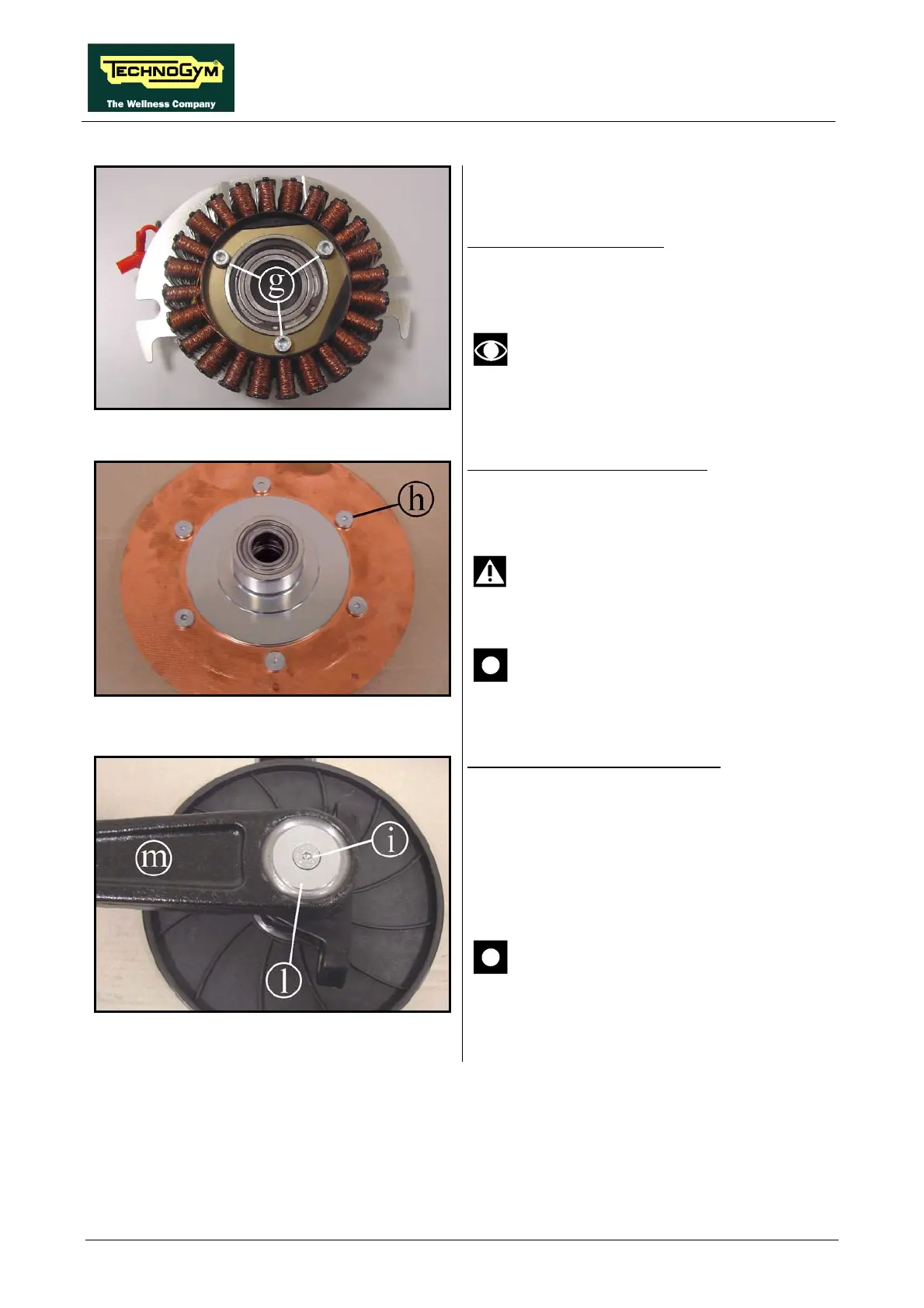

Figure 7.14-8
To disassemble the stator:
1. Back off the three screws (g) using a 4mm
hexagonal wrench and remove the stator.
It continues at page 7.36 of this procedure.
Figure 7.14-9
To disassemble the copper disk:
1. Back off the 6 screws (h) using a 4mm
hexagonal wrench.
WARNING: Take particular care with the
copper disk, as it can bends easily.
ATTENTION: During reassembly, lock
down the screws (h) using a torque
wrench setting of 6 Nm.
Figure 7.14-10
To disassemble the plastic pulley:
1. Back off the screw (i), using a 5mm
hexagonal wrench, and remove the washer
(l).
2. Remove the crank (m) using an extractor
tool.
ATTENTION: During reassembly, lock
down the screw “i” using a torque wrench
setting of 30-Nm, and applying a drop of
Loctite red thread compound.
Continued on following page
→
