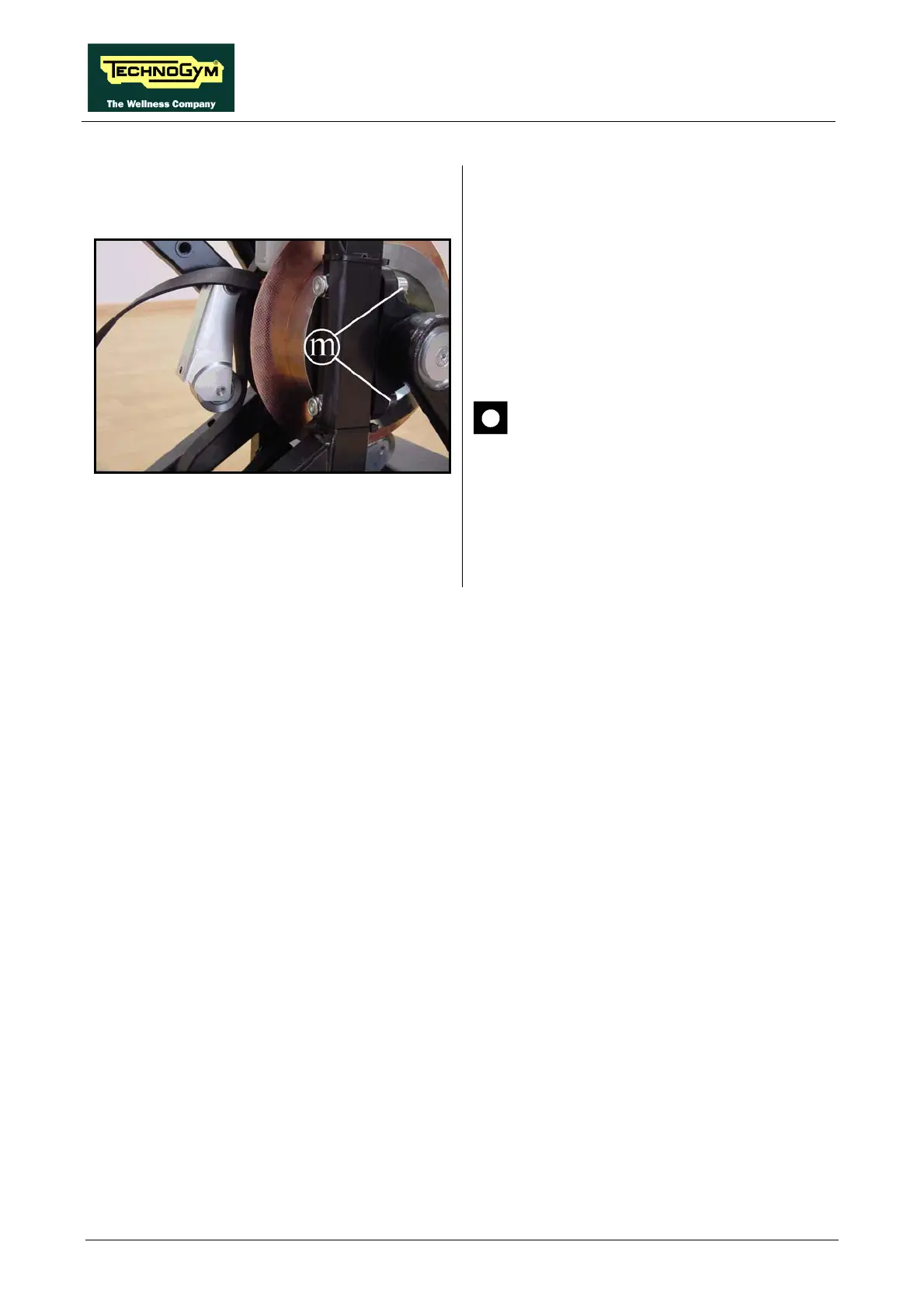

Figure 7.13-7
12. Back off the screws (m) securing the two
bridge bearings on which the primary shaft is
assembled, using an 8mm hexagonal wrench
for the screws and a 17mm wrench to hold
the corresponding nuts in place.
13. Remove the primary shaft assembly from the
machine.
14. Remove the belts.
ATTENTION: During reassembly, lock
down the screws “m” using a torque
wrench setting of 40 Nm.
To reassemble the belts, follow the above
instructions in reverse order.
