SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.31

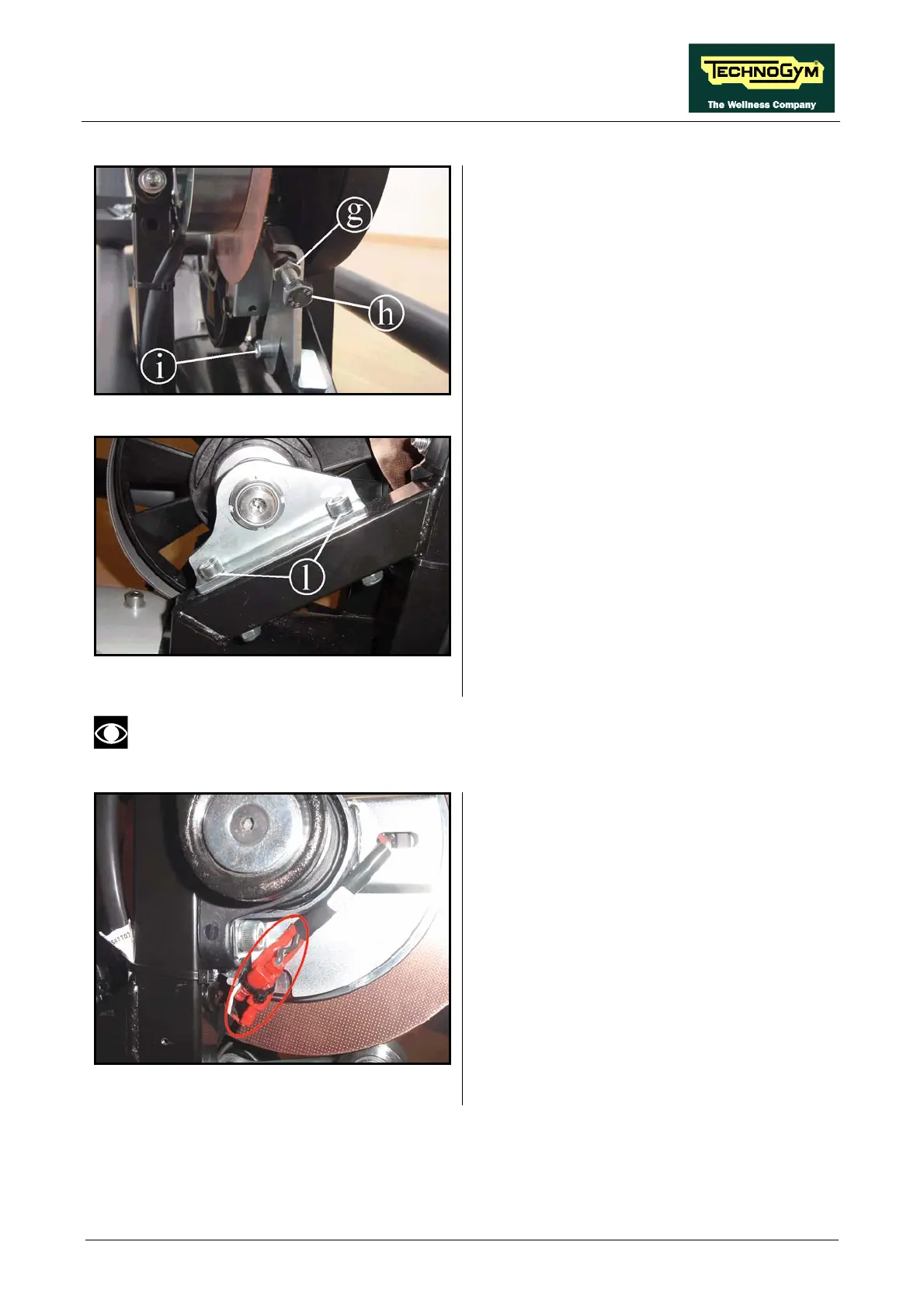

Figure 7.13-4
7. Back off the lock-nut (g) and back off the
screw (h) of the rear tensioning mechanism,
using a 17mm wrench.
8. Back off the screw (i), using an 8mm
wrench, and remove the rear tensioning
mechanism assembly.
Figure 7.13-5
9. Back off the screws (l) securing the two
bridge bearings on which the secondary shaft
is assembled, using an 8mm hexagonal
wrench for the screws and a 17mm wrench to
hold the corresponding nuts in place.
10. Remove the secondary shaft assembly,
pulling it out from the belt.
Only for 500SP and 700SP models.
Figure 7.13-6
11. Cut the strip tie and unplug the three faston
circled in the figure at left.
Continued on following page
→
