SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.41

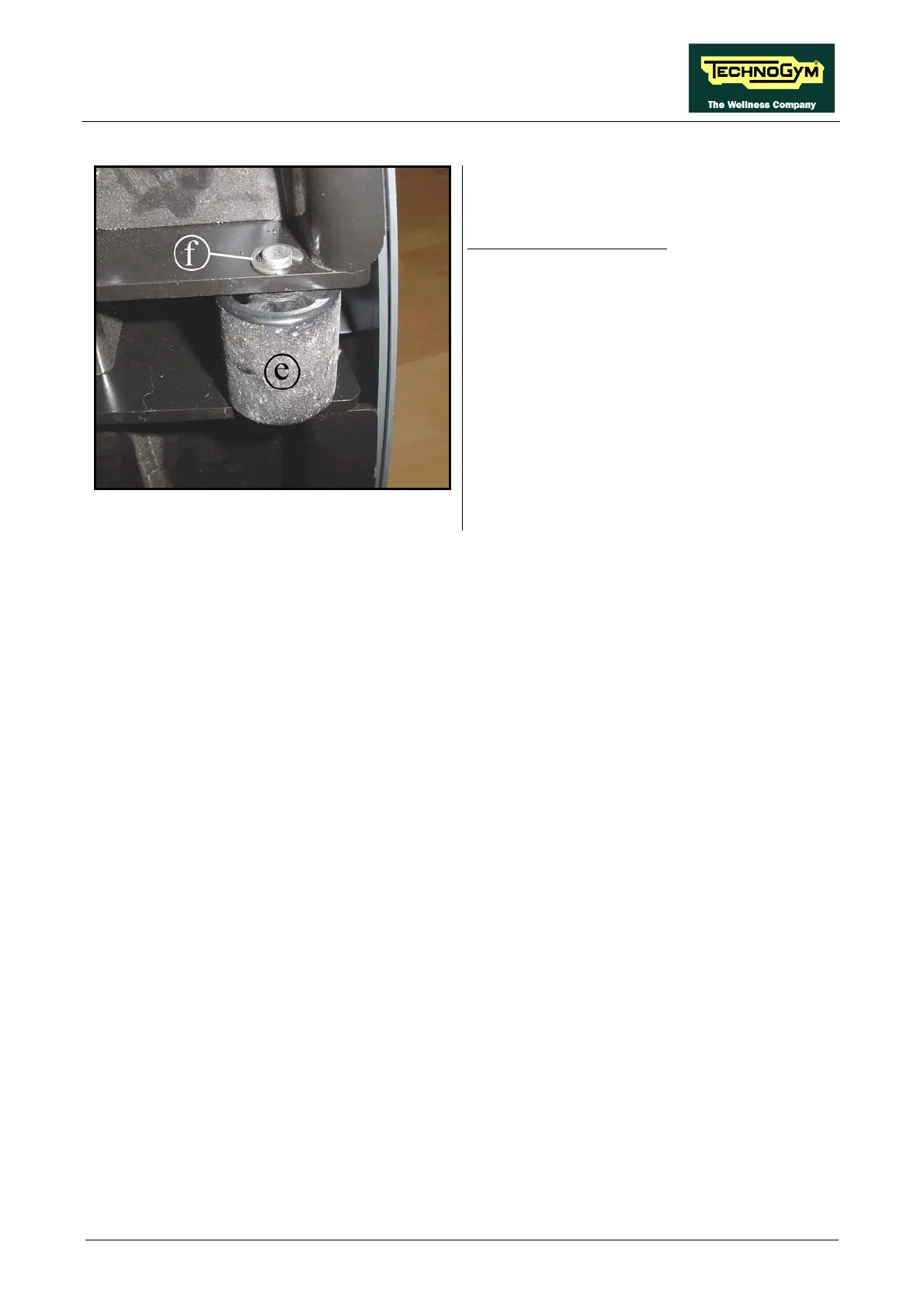

Figure 7.17-3
Disassembling the wheels:
1. To disassemble the wheels (e), remove the
snap ring (f) and pull out the pin on which
they rotate.
To reassemble the platforms, connectors and
wheels, carry out the above steps in reverse
order.
