SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Pagina 6.14

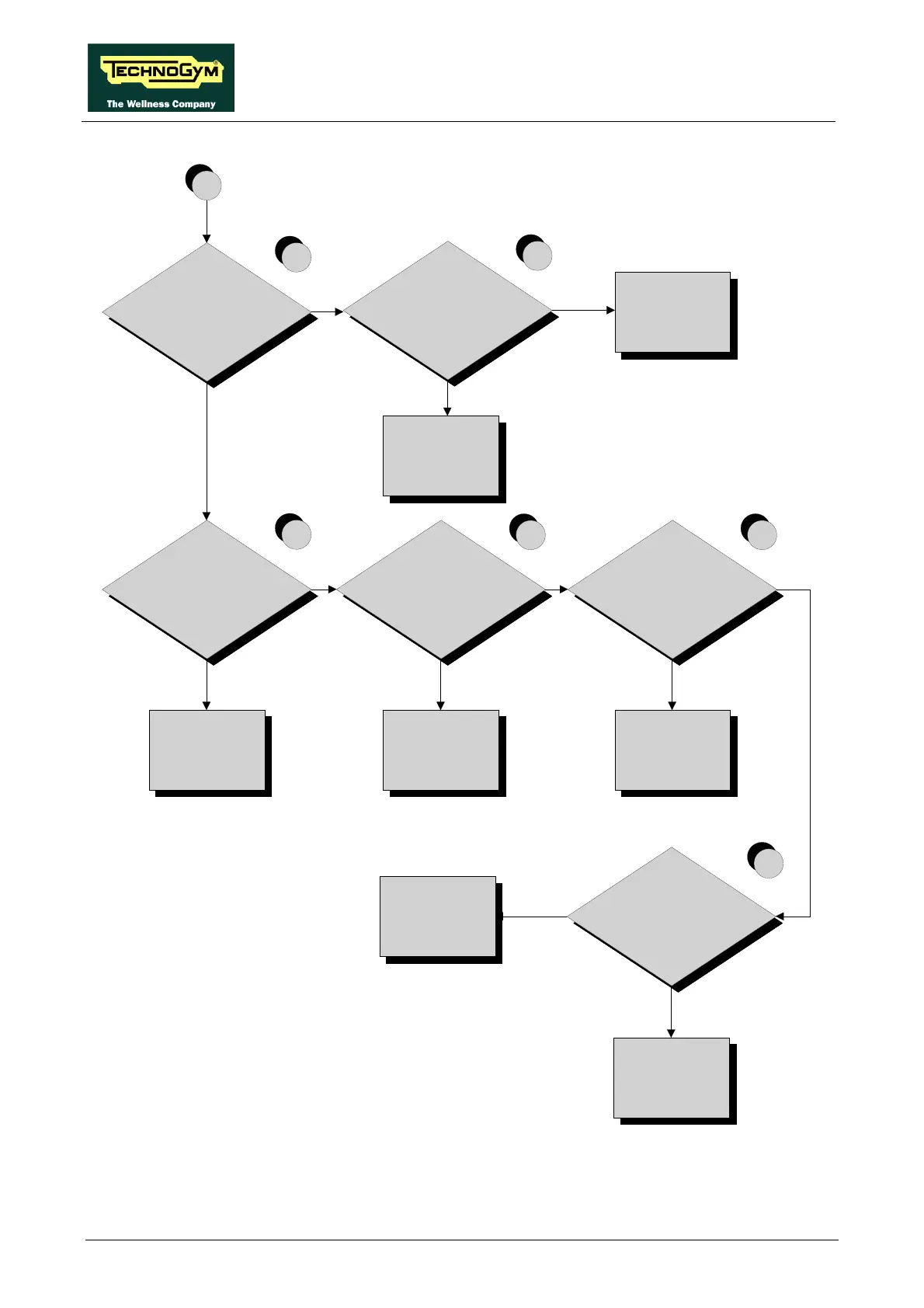

3
NO
Is the voltage at the input
of the Brake board
correct?
NO
YES
Replace ELT-00 cable
NO
Replace the power
entry module
YES
Are the voltages at the
output of the Brake board
correct?
NO
Replace the Brake
board
5
B
Are the voltages on the
patch connectors 1 and 3
are correct?
NO
Replace
ELT-04 and/or ELT-05
cables
Are the voltages at the
input of the Digital TV
board correct?
NO
Replace CU169 cable
YES YES YES
6 7
Are the voltages at the
input of the CPU board
correct?
YES
Replace CPU board
NO
Replace CU169 cable
8
4
Is the v oltage at the
output of the power entry
module correct?
