SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 6.39

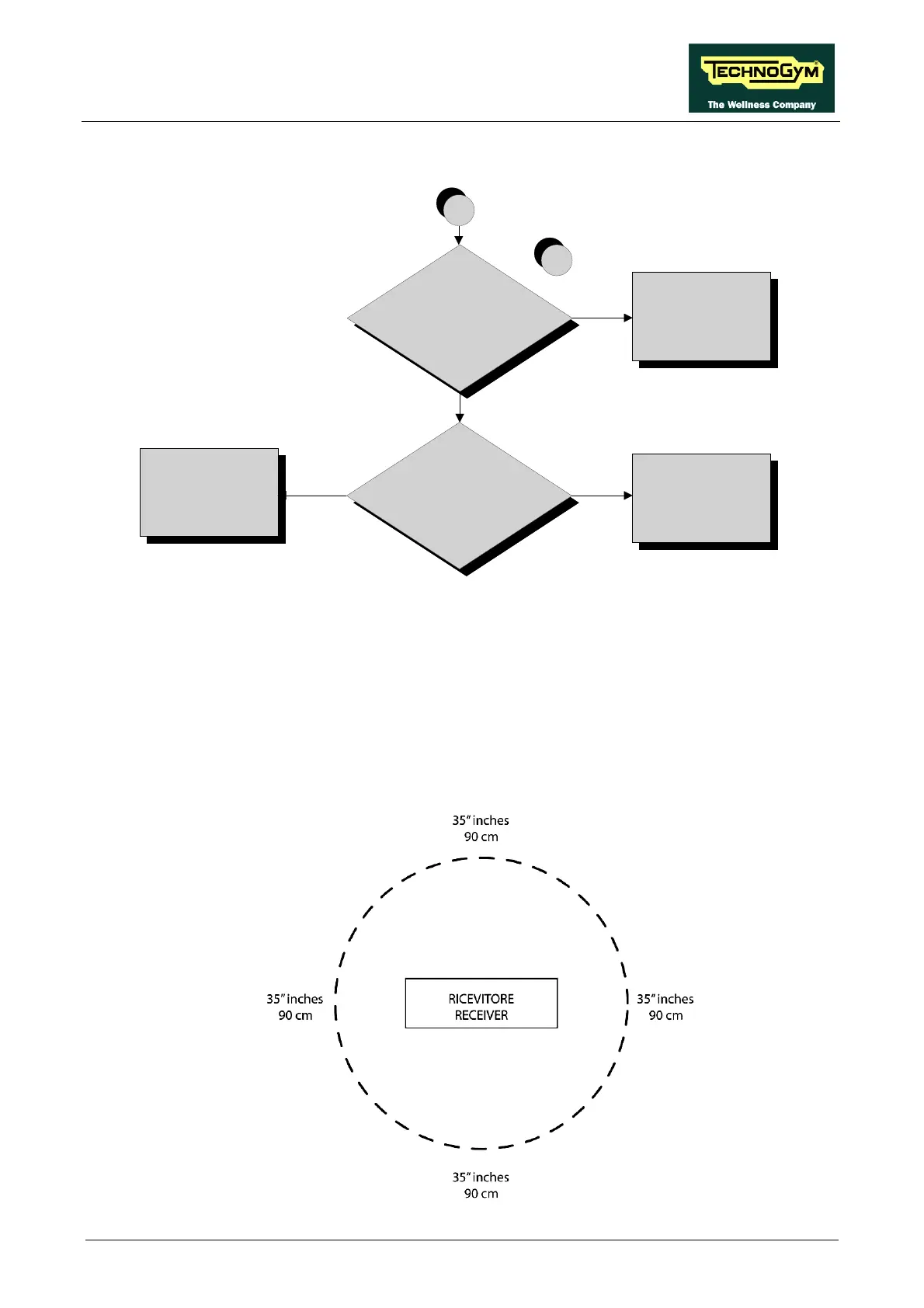

Is the transmitter always within
the 90 cm range f rom the receiver
NO
Reposition the transmitter
within range
YES
Replace the receiver
A
Is the transmitter in good
working order?
Use a correctly
f unctioning transmitter
YES
NO
5
Follow the procedure step by step to correctly diagnose the problem. Take particular care with the
checks highlighted by circled numbers, which are described in detail below:
(1) Check the earthing of the machine using a tester to measure the resistance between the ground
pin on the power supply cable and the ground node to which the receiver is connected inside
the display. The value must be less than 1 (Ohm).
(2) For machine positioning layouts, use the following diagram as a reference.
