Run the project and review the results
To run the project and review the results:
1. Select the test name at the top of the project tree. In this example, it is CVIV_COMPENSATION.
2. Select Run to start the test. The two actions and two tests run sequentially, and the 4200A-CVIV
is configured by the cviv-configure action.
3. Select Analyze to view the results.

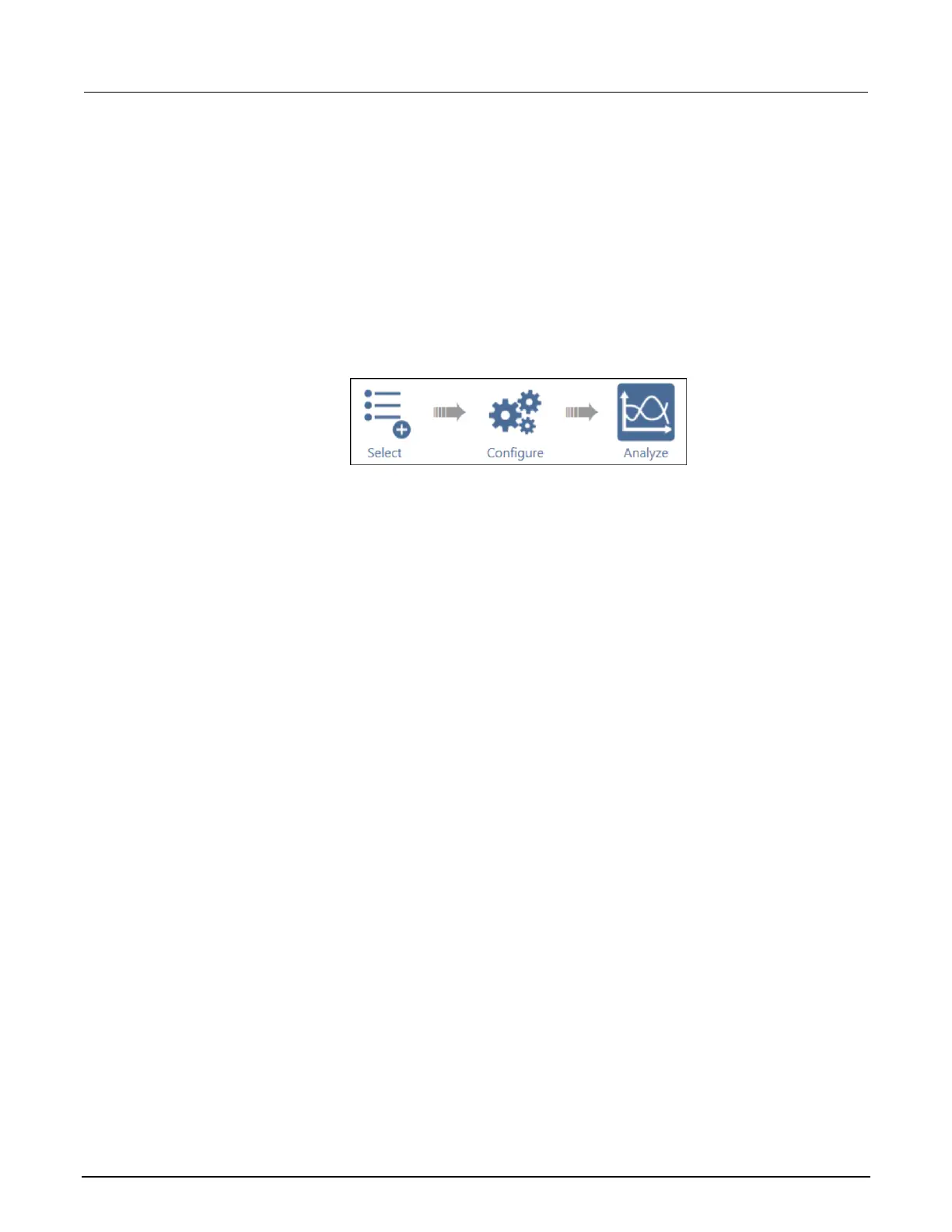

Figure 125: Analyze highlighted
4. Select the cv-nmosfet test to view the results of the C-V test.
5. Select the vds-id test to view the results of the I-V test.
