Section 3: Create a new project and test 4200A-SCS Parameter Analyzer User's Manual
3-4 4200A-900-01 Rev. D/April 2020
Select and rename a new project
To select and rename a new project:
1. Choose Select.

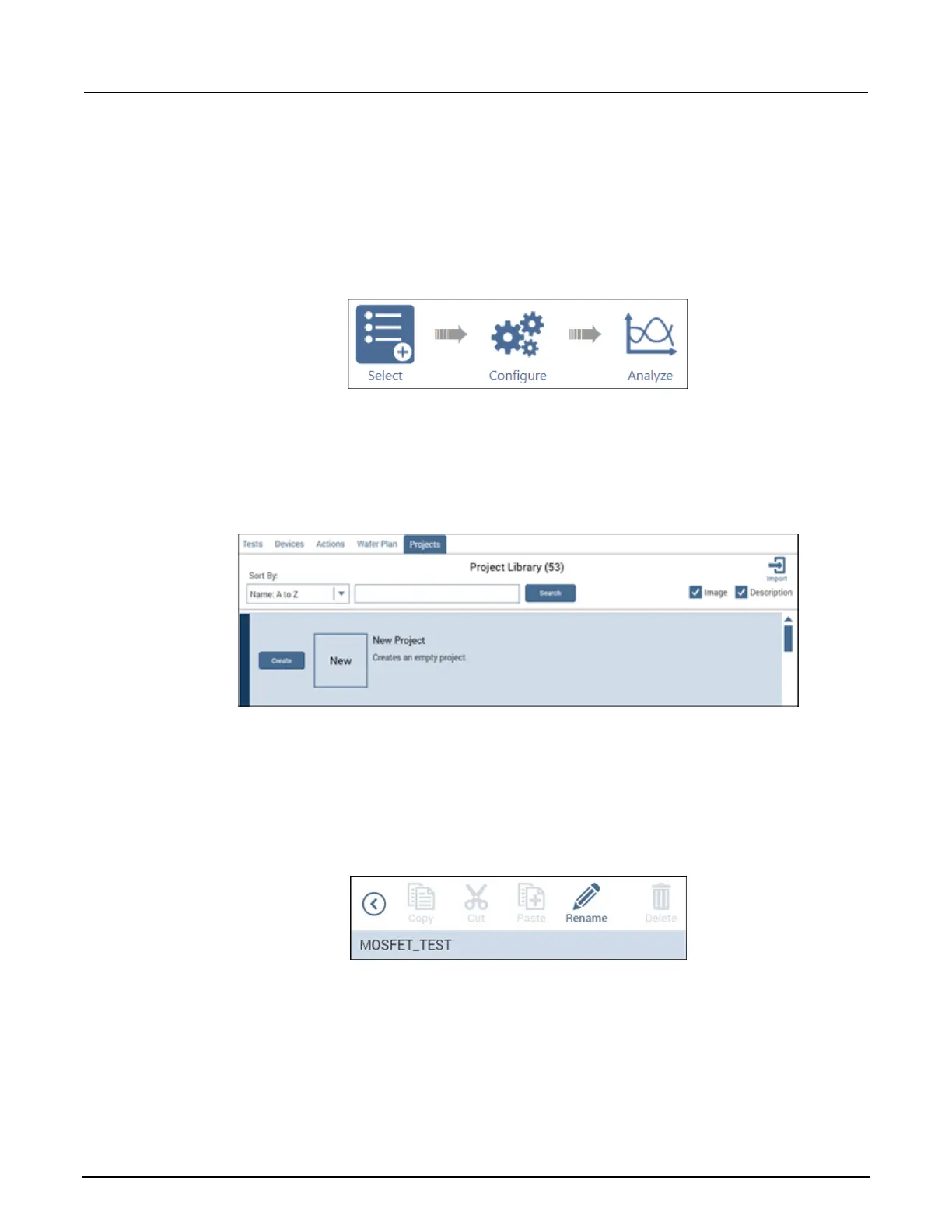

Figure 15: Select highlighted
2. In the Library, select Projects.
3. Select New Project.
4. Select Create.
Figure 16: Select a New Project from the Project Library
5. Select Yes when prompted to replace the existing project.
6. Assign a title to the project by selecting Rename above the project tree.
7. Enter a project name into the text box, then select Enter. MOSFET_TEST has been chosen for this
example.
Figure 17: Toolbar with Rename function
