Section 7: Make C-V measurements on a MOSCAP 4200A-SCS Parameter Analyzer User's Manual
7-14 4200A-900-01 Rev. D/April 2020

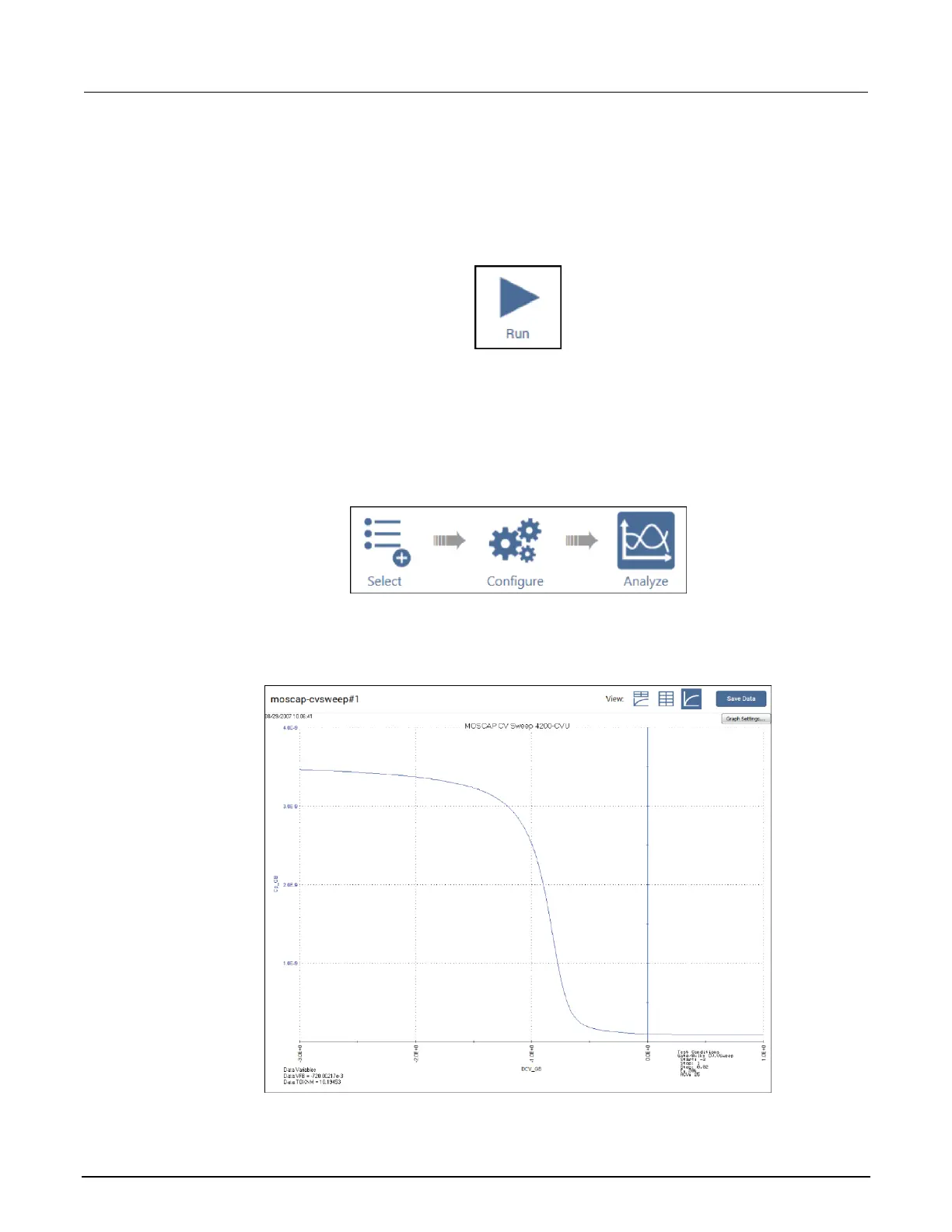

Run the test
Select Run to execute the test.
Figure 100: Run
View and analyze the test results
Select Analyze when you run the project to view test results in real-time.
Figure 101: Analyze highlighted
The C-V data is plotted on the graph as the moscap-cvsweep test executes.
Figure 102: Graph in the Analyze pane
