Tektronix Keithley 4200A-SCS User Manual

Section 3: Create a new project and test 4200A-SCS Parameter Analyzer User's Manual
3-6 4200A-900-01 Rev. D/April 2020
Select a custom test
To select a custom test:
1. Select Tests.
2. Select Custom Test, then select Add to create a new 3-terminal, n-type MOSFET test in the
project tree.

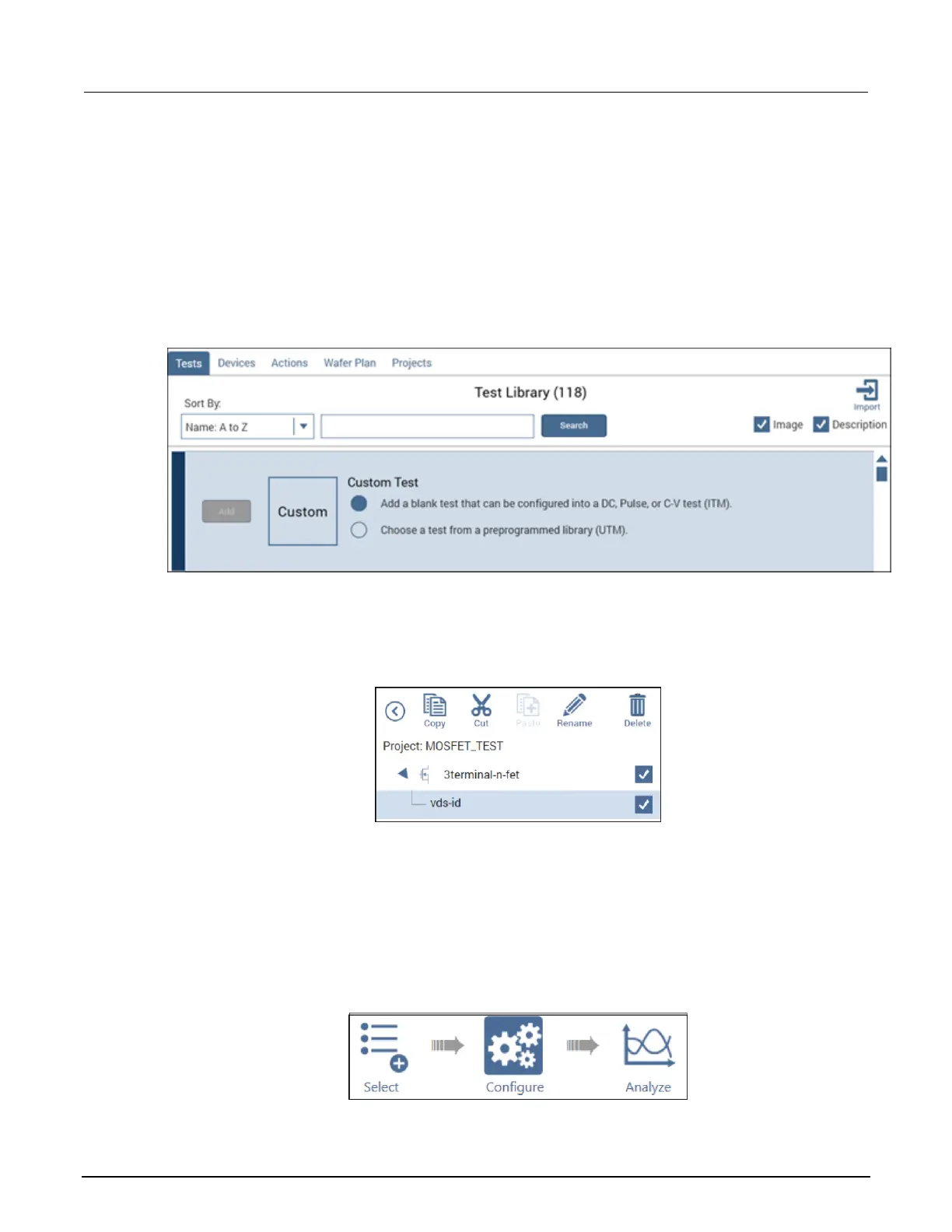

Figure 19: Custom Test option
3. Select Rename from the toolbar. Enter a test name in the text box, then select Enter. vds-id
was chosen for this example.
Figure 20: MOSFET_TEST project tree with one device and one test
Configure the test
To configure the test:
1. Select Configure.
Figure 21: Configure highlighted
