4200A-SCS Parameter Analyzer User's Manual Section 6: Make I-V measurements on a solar cell
4200A-900-01 Rev. D/April 2020 6-3
Connect the 4200A-SCS to the DUT

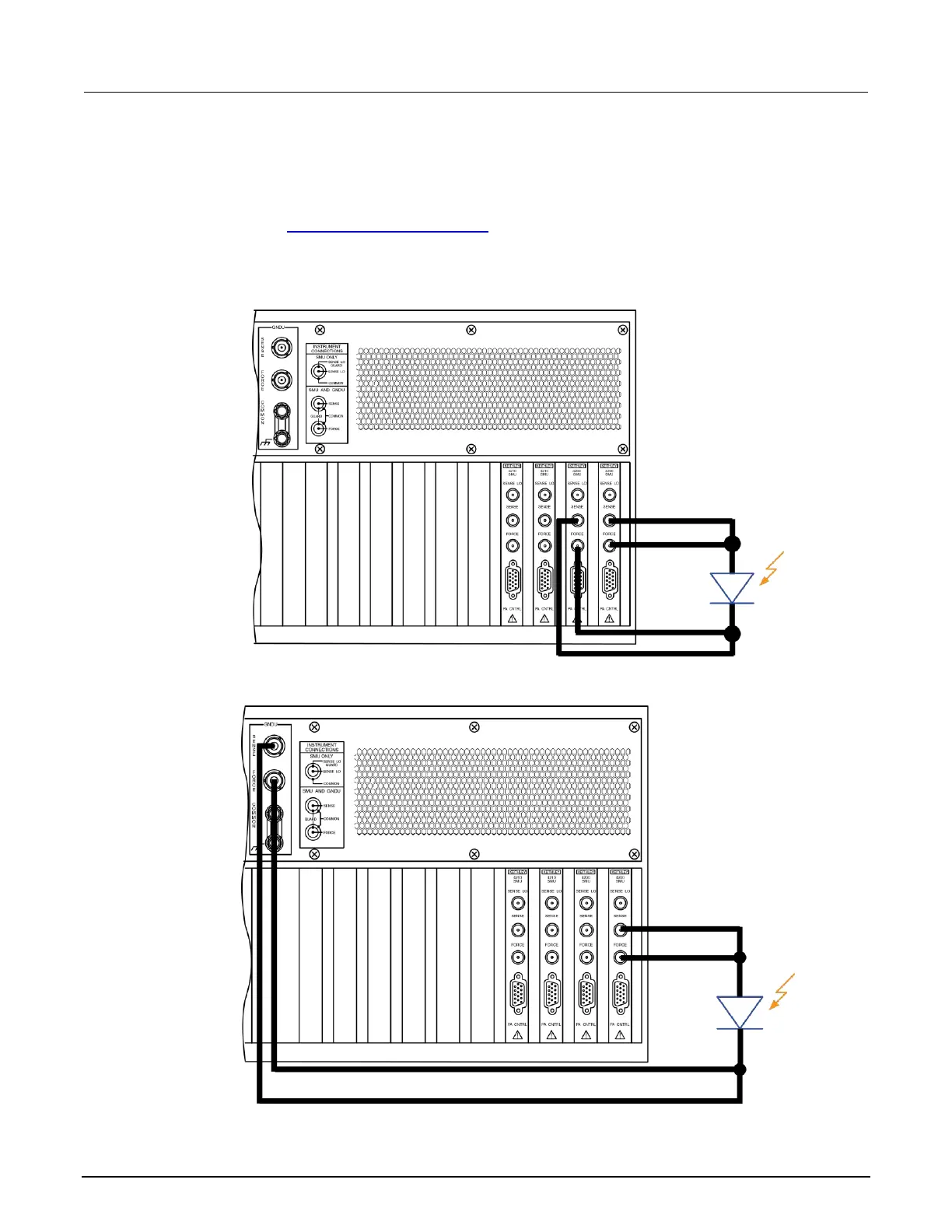

The following two figures show the 4200A-SCS rear panel connections for the two methods
mentioned in the Device connection schematic (on page 6-2) topic. You can make the connections
shown in the following figures using four 4200-TRX-2 or 4200-MTRX-2 triaxial cables.
Figure 72: Rear panel connections using two SMUs
Figure 73: Rear panel connections using one SMU and GNDU
