Tektronix Keithley 4200A-SCS User Manual

4200A-SCS Parameter Analyzer User's Manual Section 9: PMU for pulsed I-V measurements on a MOSFET
4200A-900-01 Rev. D/April 2020 9-3
Connection schematic
The hardware connections from the output terminals of the PMU and the two RPMs to the MOSFET
are shown in the following figures.
Connect one CA-547-2A RPM interconnect cable from each PMU channel to the appropriate RPM.

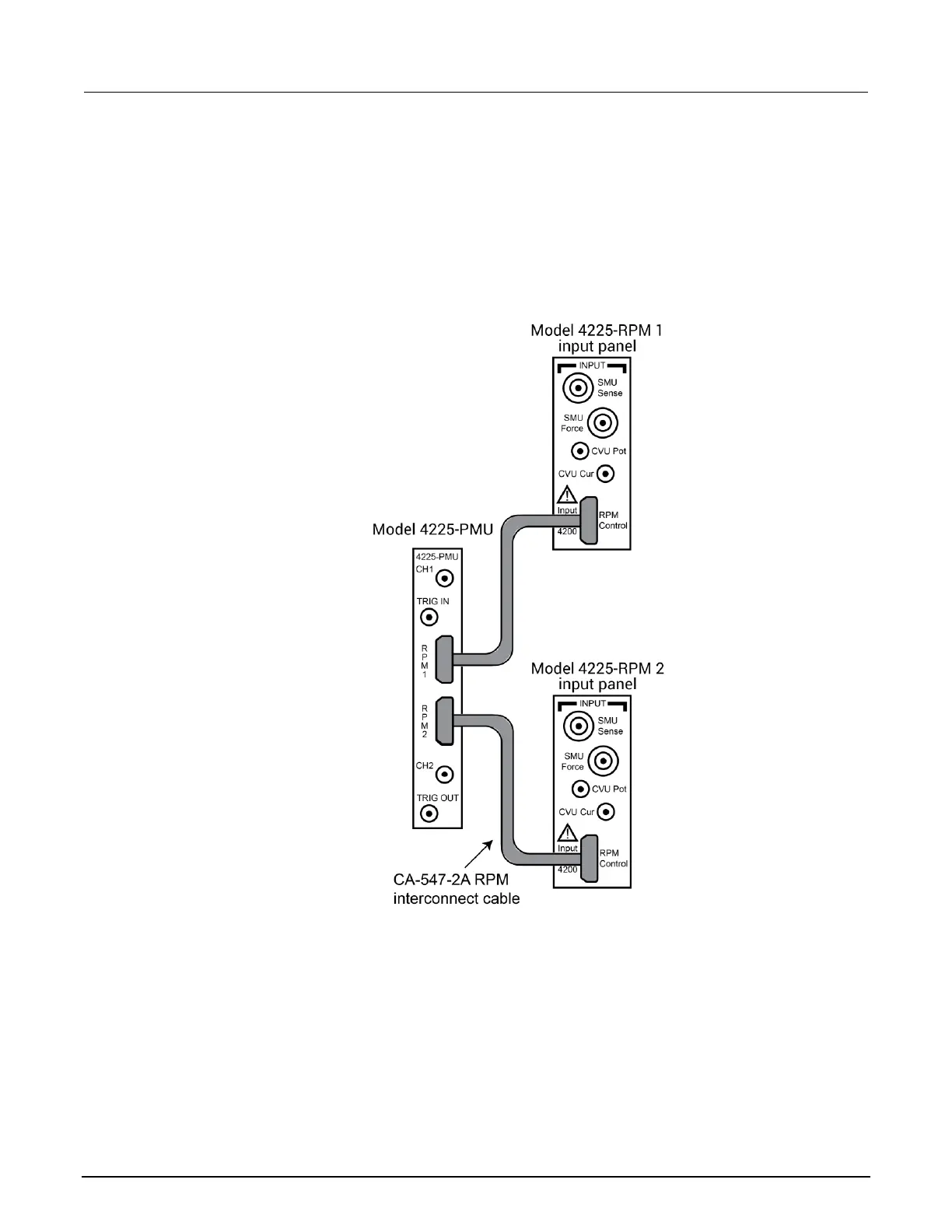

Figure 126: Connections from the PMU to the RPM inputs
