Installation

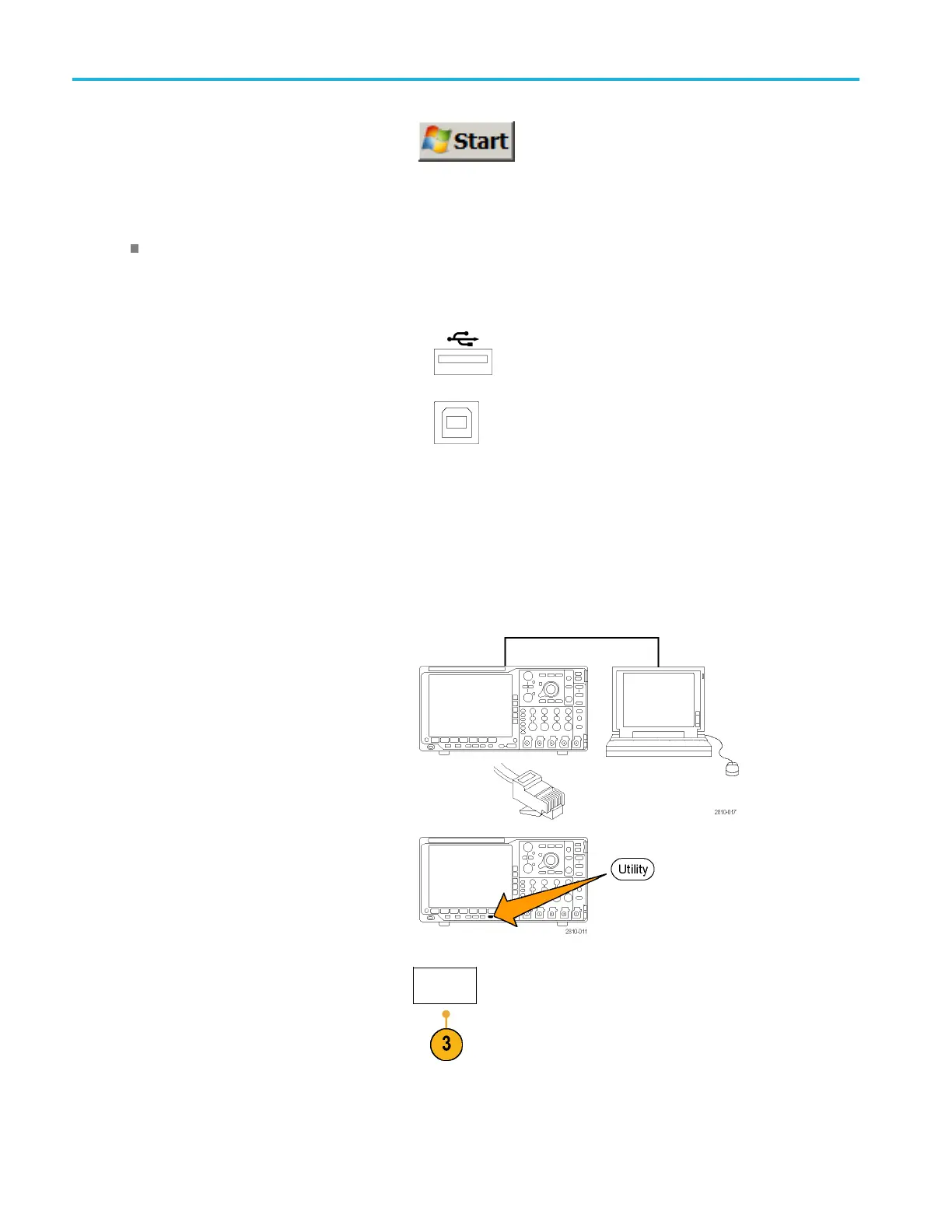

10. Run your application software on your
computer.
Quick Tips
The rear-panel USB 2.0 device port is the correct U SB port for computer connectivity. U se the rear and front panel USB
2.0 host ports to connect your oscilloscope to USB flash drives. Use the USB Device port to connect your oscilloscope
to a PC or a PictBridge printer.
USB Host port
USB Device port
Using the LXI Web Page and e*Scope
With e*Scope, you can access any Internet-connected MSO4000B or DPO4000B Series oscilloscope from a w eb browser on
your computer. No matter where you are, your oscilloscope is as close as the nearest browser.
To set up e *Scope communications between your oscilloscope and a Web browser running on a remote computer:
1. Connect the oscilloscope to your computer
network with an appropriate Ethernet cable.
2. Push Utility.
3. Push Utility Page.
Utility
Page
28 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
To Next Page
